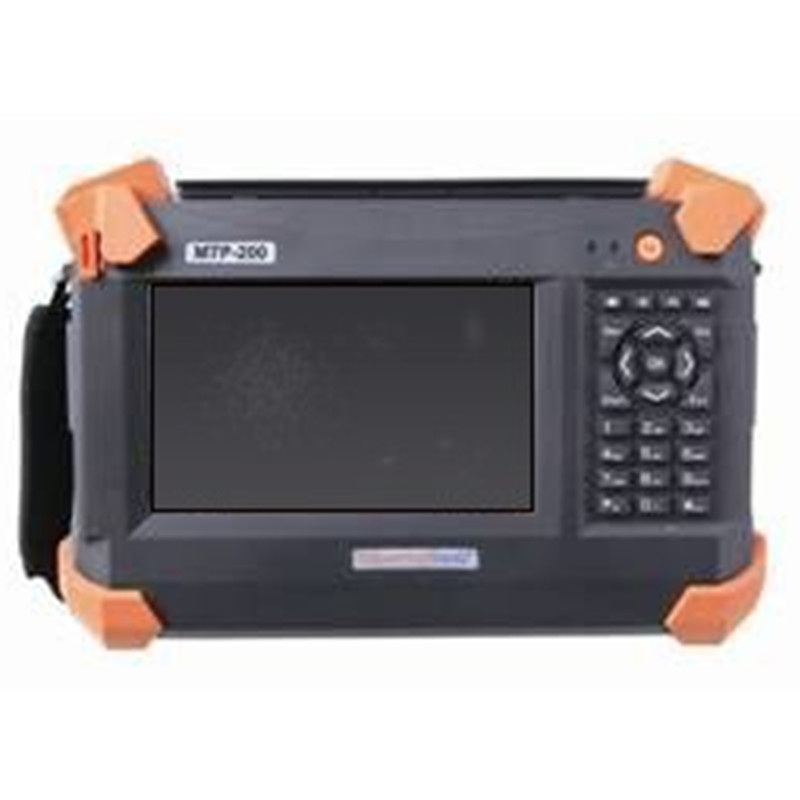

FOT-200 series are the compact multi-functional platform, which are specially designed for FTTx/WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting. It is convenient and accurate for auto/manual testing, multi-wavelength testing and multi-functional analysis.
——
Specifications
FOT-200 Series | |
Display | 7 inch TFT Touch Screen (800×480) |
Connectivity | USB×2; 10/100Mbit/s RJ-45×1 |
Memory | 2GB |
Power Supply | Rechargeable Li-Ion Battery/AC Adapter |
Battery Life | 10 hours continuous operation |
Working Temp. | -20℃ - 50℃ |
Storage Temp. | -40℃ - 60℃ |
Humidity | 0 - 95% (Non-Condensing) |
Weight | 2.1kg |
Dimensions (L×W×H ) | 290×175×75mm |
OTDR module
Module | Wavelength(nm) |
FOT-200-CWDM-4A | 1271/1291/1311/1331 |
FOT-200-CWDM-4B | 1351/1371/1391/1411 |
FOT-200-CWDM-4C | 1351/1411/1431/1451 |
FOT-200-CWDM-4D | 1431/1451/1471/1491 |
FOT-200-CWDM-4E | 1471/1491/1511/1531 |
FOT-200-CWDM-4F | 1511/1531/1551/1571 |
FOT-200-CWDM-4G | 1551/1571/1591/1611 |
FOT-200-CWDM-8A | 1471/1491/1511/1531/1551/1571/1591/1611 |
FOT-200-CWDM-16 | 1271/1291/1311/1331/1351/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 |
FOT-200-CWDM-18 | 1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611 |
Dynamic Range | 36dB |
Dead Zone | EDZ: 1m, ADZ: 4m |
Selectable Range | SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km |
Pulse Width | SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs |
Sampling Points | 256000 |
Averaging Time | Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s |
Connector | FC/PC (Interchangeable SC, ST and LC ) |
Distance Accuracy | ±(0.75m + 5x10-5 x distance +sampling resolution) |
Attenuation Accuracy | ±0.05 dB/dB |
Reflection Accuracy | ±4 dB |
Visible Laser Source | Output Power:≥-3dBm MOD Frequency: 1Hz Detecting Range: 5Km |
MCI100 Optical Connector Inspector Module (Optional) | |
Field of View | 400µm×300µm |
Resolution | ≤1.5µm |
Focusing | Manual Focus |
Microscope Dimensions | Ø32×175mm |
LS100 Stabilized Laser Source（Optional） | |
Wavelength (±20nm) | Same as OTDR’s |
Output Power | ≥-7dBm |
PM100 Normal Power Meter Module(Optional) | |
Calibrated Wavelength | 850nm,1300nm,1310nm,1490nm,1550nm,1625nm,1650nm |
Measurement Range | -70dBm - +6dBm (-60dBm - +6dBm @ 850nm) |
Detector Type | InGaAs |
Display Resolution | 0.01dB |
Accuracy | ± 5% ± 0.01nW (±0.5dB@850nm) |
Product Brief
Multi-Function and High Performance OTDR Testing
● Up to 18 CWDM wavelengths, customizable
● Dynamic Range up to 36dB
● Short zone: EDZ 1m, ADZ 4m
● Auto/Manual test and analysis
● Multi-wavelength testing
● Visible laser source function
● Fault locating, fiber length/loss/return loss measurement, connector/ splice/ splitter/ macro bend/fiber-end detection
● GR-196-CORE (.SOR) file format
● SOR and JPG file format
● Flexible file naming
● LinkImage smart graphic analysis
Key Features
● Lightweight, 2.1kg ● 7 inch touch screen
● Windows user interface for easy operation ● Damp-dust-shock proof
● Multi traces analysis ● Single/multi traces printing in one report
● Batch editing and printing ● Bidirectional traces analysis
● CSV report formats ● Remote control function
● 10 hours continuous operation ● Supports WiFi/Bluethooth/GPS
● Direct printing function(compatible with PCL printers) ● Remote/local control by PC
FOT Suite PC Software
l Multi traces analysis
l Single/multi traces printing in one report
l Batch editing and printing
l Bidirectional traces analysis
l CSV report formats
l Remote control function
Network Remote Control Module（optional）
l Convenient networking
l Remote control instrument operation
Optical Connector Inspector Module（optional）
l Focusing knob for fast focus
l Eye-safe and clear video viewing
l Interchangeable connector tips
Stabilized Laser Source Module（optional）
l Wavelength same as the OTDR
l High precision and easy operation
Optical Power Meter Module (optional)
l Multi-wavelength Calibration
l High Precision
l Convenient Operation
Applications
l Installation Stage
l Service Deployment
l Maintenance Stage
