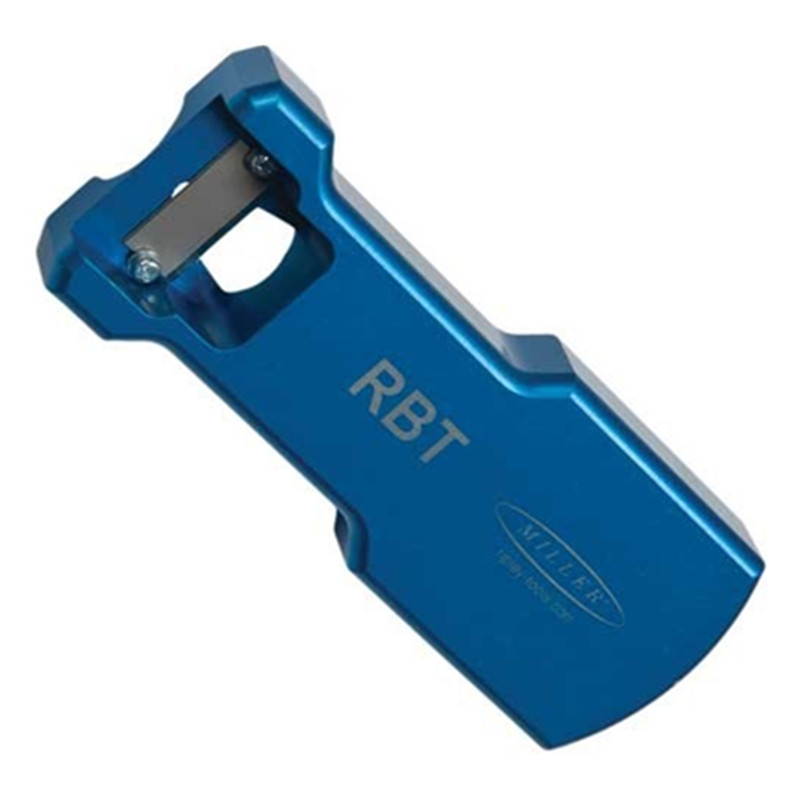

FOT-RBT Riser Cable Fiber Break Out Tool

Product Brief

——

The RBT Riser Break-out Tool is designed to cut an access window in 8.5mm, 10.5mm, and 14mm riser cable jackets without adjustment.

Operation:

1. Grasp the tool in the area of the window cut, applying forefinger pressure on the cable against the blade. (Fig.1)

2. Draw the tool in the direction of the desired window holding pressure against the cable. (Fig.2)

3. To terminate the window cut, lift the back end of the tool until the window chip breaks off (Fig.3)

4. The low profile design also allows for tool operation on a face mounted cable. (Fig.4)


Tool features:

 ·Lightweight aluminum body construction

·Fits into small areas for closely packed riser cables

·Can be used on cable mounted directly to wall ·Blade is recessed for user safety

·Easily replaceable blade with no adjustments

·Tool dimension: 100mm x 38mm x 17mm Weight: 0.1kg
