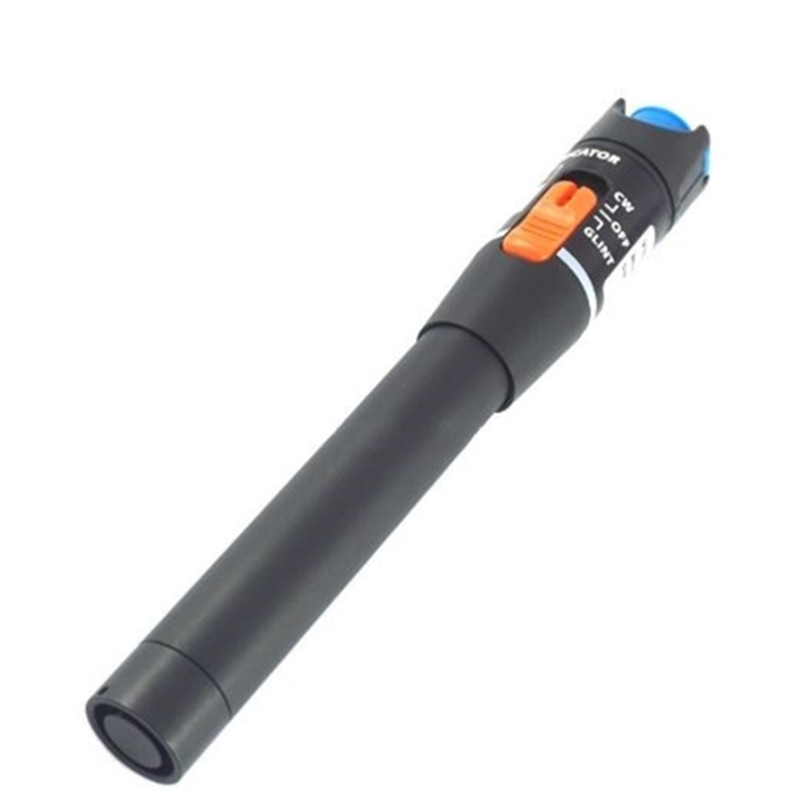

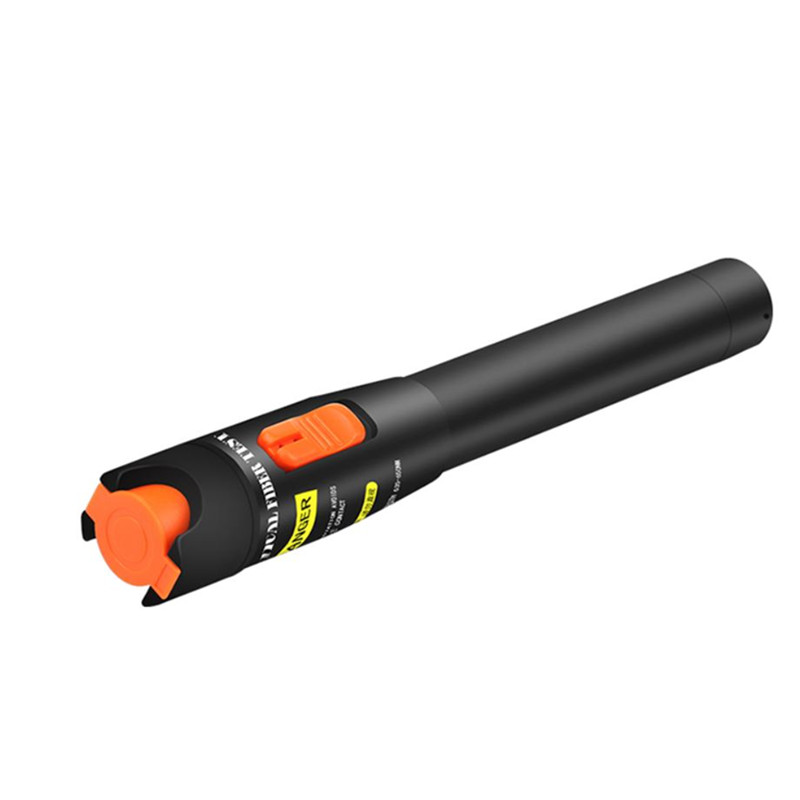

FOT-VFL6505 Pen-style Visual Fault Locator

Inquire Online

Product Brief

——

FOT-VFL6505 Series Pen style visual fault locator provides a stable visible red light for users to easily locate fiber faults, broken or micro-bends in installation or maintenance of optical network. With the modulation function, it is also applicable for end to end identification.

Specification

Model	FOT-VFL6505
Central Wavelength(nm)	650±10
Emitter	FP-LD
Output power(Mw)	1/10/20/30
Optical connector	2.5mm Universal
Modulation(Hz)	CW/2
Battery	AA(2pcs)
Operating Time(h)	≥50
Operating temperature(℃)	-20--+60
Storage temperature(℃)	-40--+60
Dimension(mm)	25*175
Weight(g)	100 (excluding batteries)
Brand	FOT

Features

l Constant and stable output power

l Different output power available

l CW or 2Hz modulated signal

l Low power alarm

l Up to 50 hours battery life
