Product Brief

——

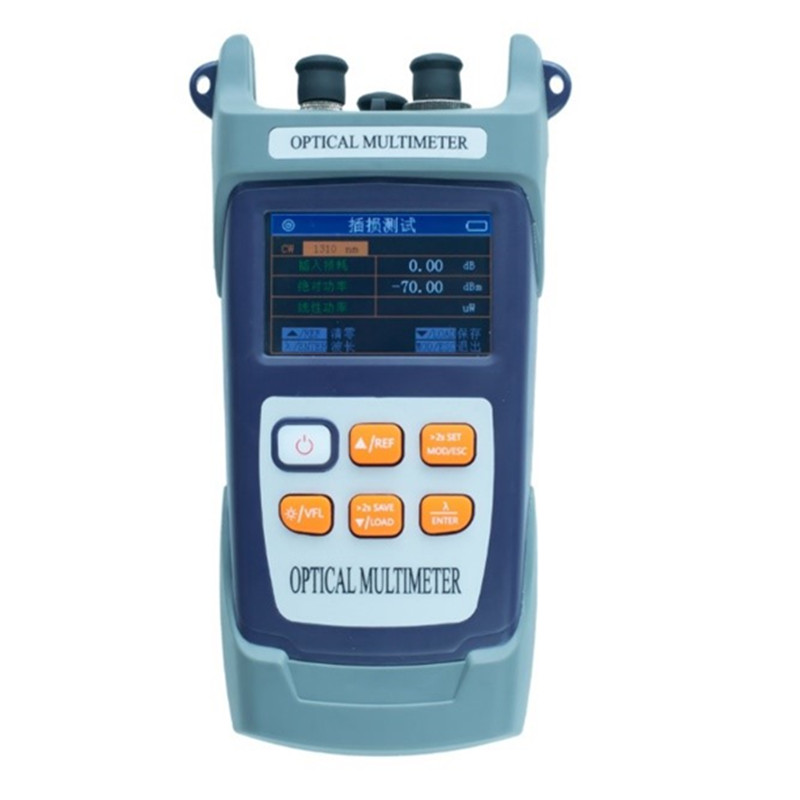

FOT3308 hand held return/insert loss tester is used to measure the return loss in the field fiber optic linking, in order to adjust the quality of the optic fiber end-face, and to make sure the fiber optic communication is in good condition. This FOT3308 hand held return loss tester can realize measurement of Return Loss, Insertion Loss, Output power, and also can be used as the laser source. Moreover, it has the data storage function of 500 measurement items.

Model	FOT3308
Return Loss Testing
Wavelength(nm)	1310/1550
Plus Width(nm)	<5
Displaying range(dB)	-70~+0
Accuracy(dB)	±0.5
Optical Connector	FC/APC
Resolution(dB)	0.01
Power Meter
Wavelength(nm)	800~1700
Calibrated wavelength(nm)	850, 1300, 1310, 1490, 1550, 1625
Connatural uncertainty(dB)	±0.25
Displaying Range(dBm)	-70 ~+6
Communication Port	USB
Insert Loss Testing
Wavelength(nm)	1310/1550
Test Range	-70~+0
Accuracy	±0.3db
Resolution	0.01db
Connector	FC/APC
Light source
Wavelength	1310/1550
Emitter type	FP-LD
Pulse width	<5nm
Output power	≥-5dbm
Stability	±0.05db
Alkaline battery	3*AA,1.5V
Display	LCD
Operation Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
G.W.	380g
Packing sizes	180mm(L)90mm(W)36.5mm(H)

Features

A variety of functional test pattern (RL.IL.OPM.OLS)

The test data uploading is stored.

Support USB power supply function.

Interface simple, easy to operate.
