Product Brief
——
FOT6208 is a recognition to pinpoint the target cable buried in the environment of equipment, piping (manhole), tunnels and poles for overhead such as the use of acoustics. This device is suitable for people under ambient cable locating wells, tunnels, pipelines, etc., with user-friendly, simple and practical, non-toxic, does not damage the advantages of fiber optic cable.
Model | FOT6208 |
Max Detection Distance | 60km、120km |
Output power of light source | >-3dBm |
Wavelength | 1550nm |
Fiber type | SM |
Connector | SC/APC |
Output mode | Vibration amplitude, pulse mode, sound |
Power supply | DC12V |
Battery | rechargeable |
Working temperature | 0~45℃ |
Storage temperature | -20~60℃ |
Dimension | 100*200*30mm |
Weight | 1500g |
Features
- Multi-adjustable sensitivity to adapt to a variety of detection range
- Maximum detection range of 120Km

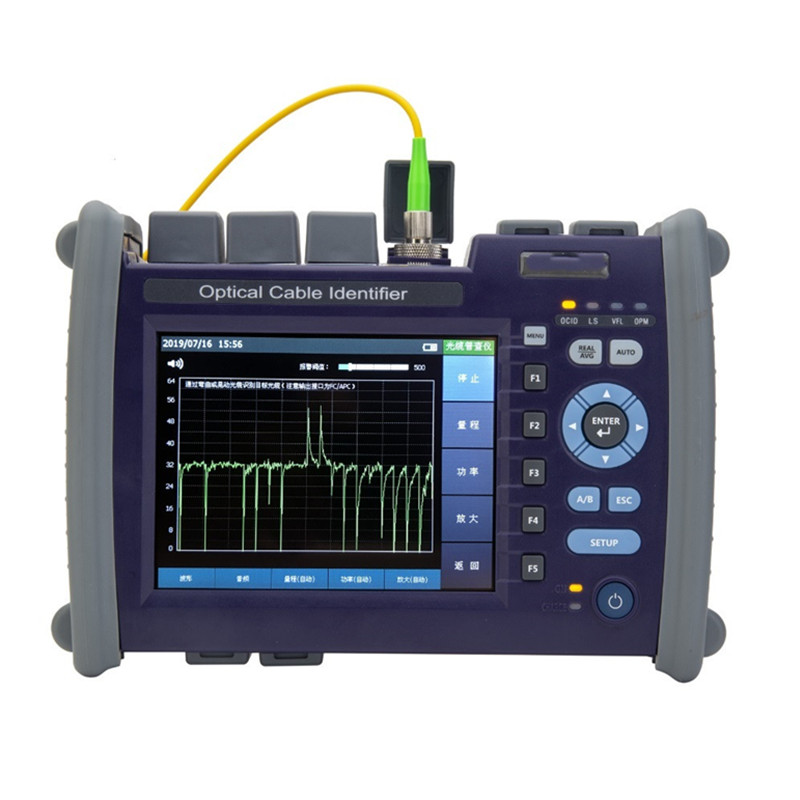

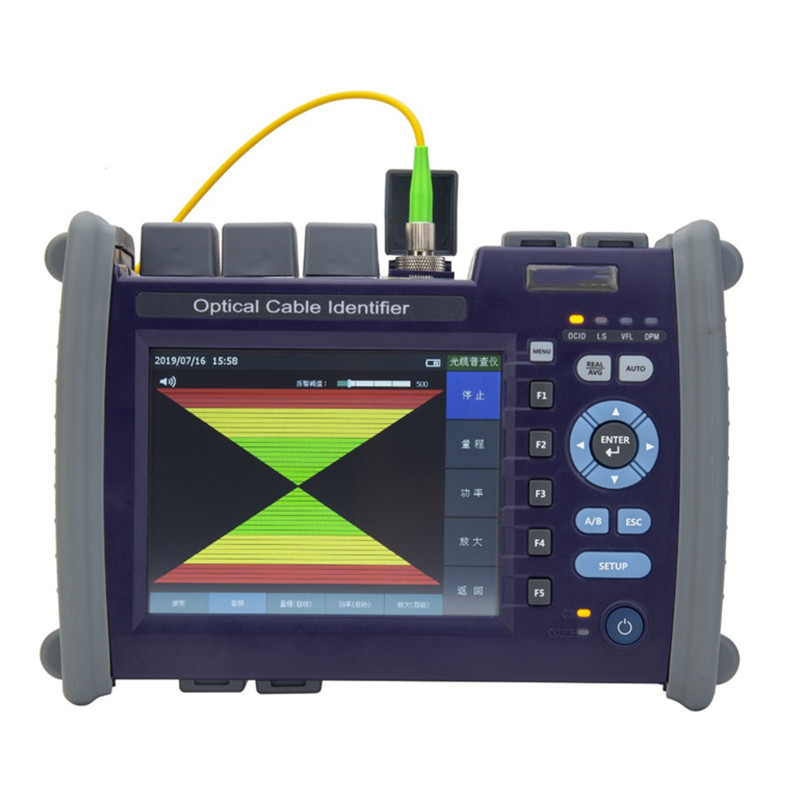

- LCD screen in real-time waveform display intelligent mode switching
- A variety of methods to accurately identify the fiber under test
- To find fault with short red function
- Mechanical perturbations cable remote listens
- In a noisy environment through audio or video cable positioning
