Product Brief

——

FOT4108 fusion splicer adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications. Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, English etc.

Optical Specifications	FOT4108
Fiber Types	Single mode (ITU-T G.652), multimode (ITU-T G.651), dispersion shifted (ITU-T G.653), non-zero dispersion shifted (ITU-T G.655)
Average Splicing Loss	0.02dB with G.652, 0.01dB with G.651 and 0.04dB with G.653 and G.655
Splicing & Heating Time	Typical splicing time:8s, Typical heating time:30s
Return Loss	60dB or greater
Fiber Coating	100μm to 1000μm
Fiber Cladding	80μm to 150μm

Technical Specifications

Features

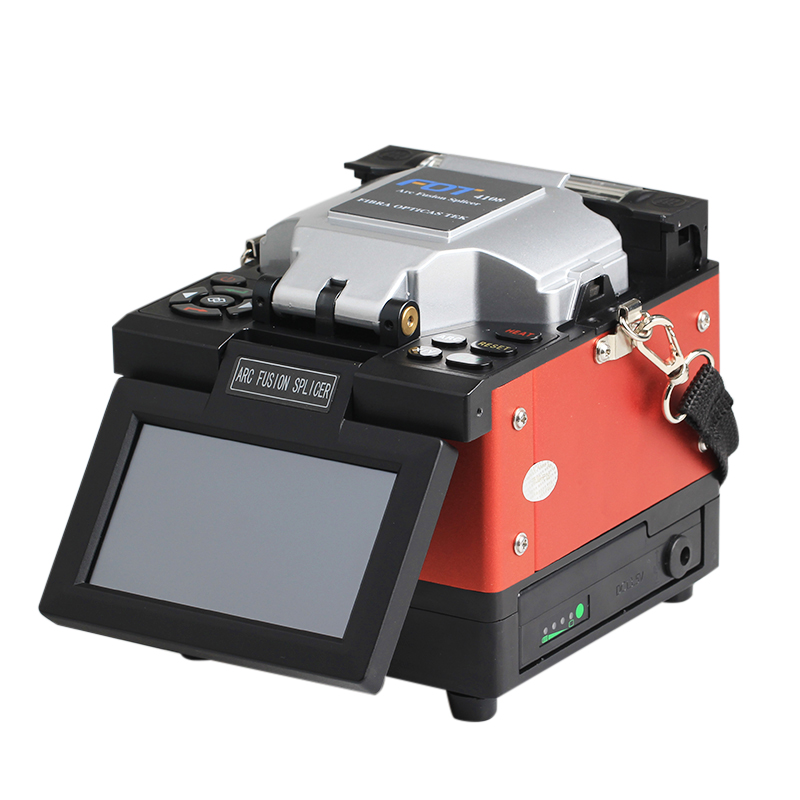

* High-resolution true color 5inch LCD display

* The advanced core to core fiber profile alignment system(PAS)

* Real time calibrating system ,parameter needn^’t be adjusted

* X/Y axes were displayed meanwhile, Magnification up to 304 times

* 8 seconds splicing time, 30 seconds Heat-Shrinking

* Battery capacity was display in real time, precisely

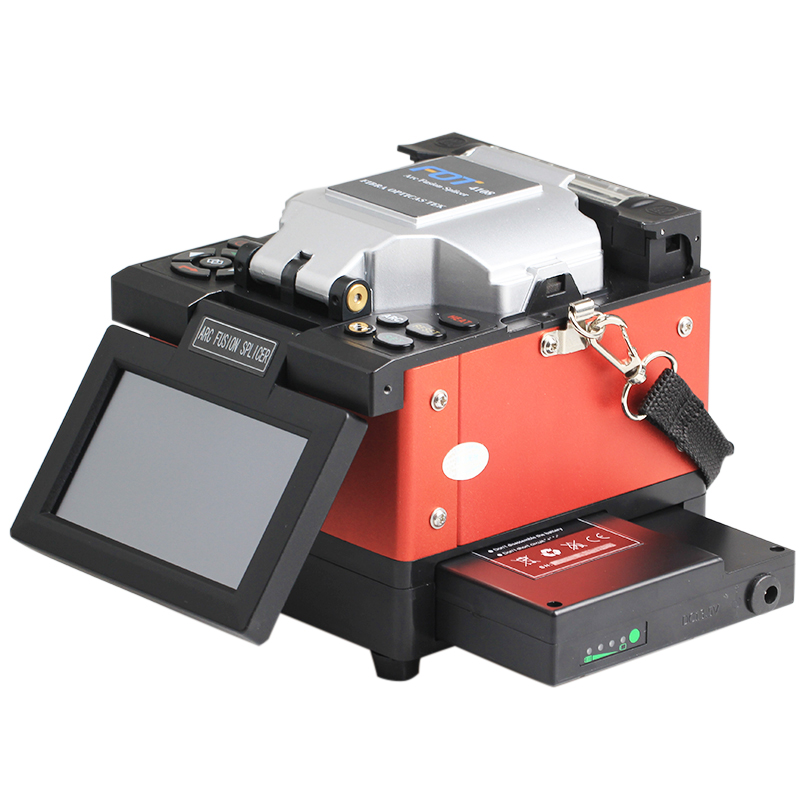

* Built-in high capacity battery, support 220 times splicing and heating, to meet one days’ work

* Long Electrode Lifetime, up to 4000 times

* The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s

* Three Splicing modes: auto, half-auto, manual

* Built-in super high-brightness LED supply convenience for night work

* Auto calculate splicing loss

* Small bulk and light weight, only 2.1kg include battery

* 4000 results Storage

* USB data interface &VGA

* One button operation to finish results download or software update

* Close shield splice automatically, Close heater lid heat automatically
