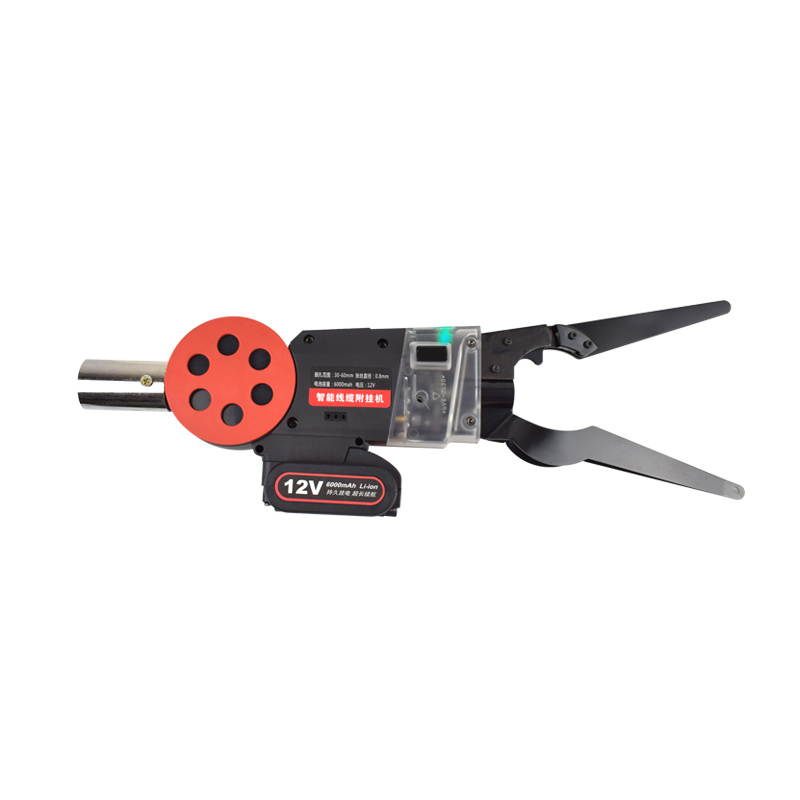

FOT-580A Fiber cable wrapping machine_Optical Fiber Tools_PRODUCT_PRODUCT/产品_Fusion splicer,fiber tester and fiber tools

Product Brief

——

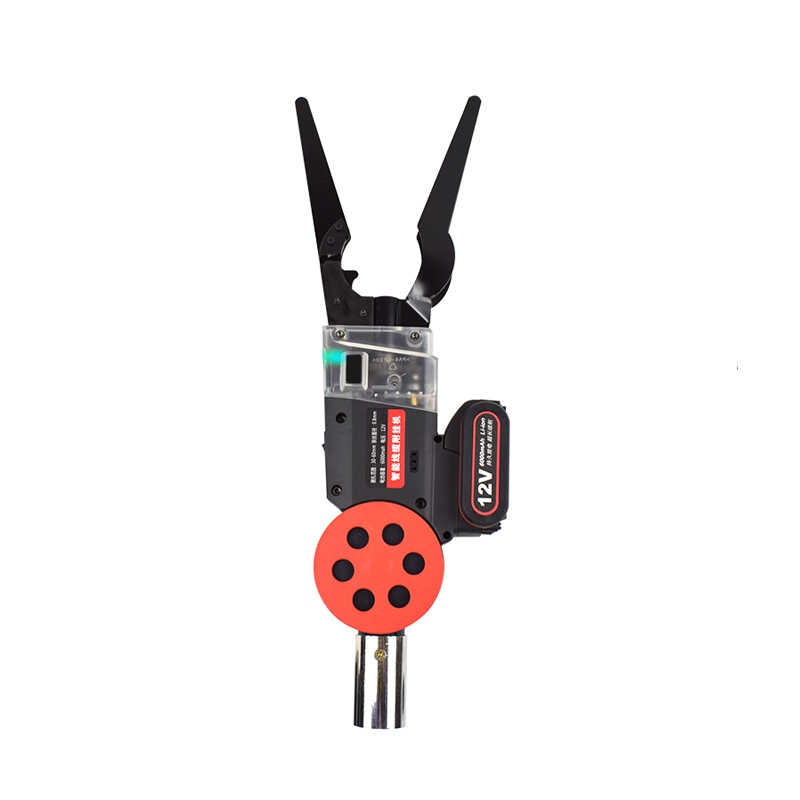

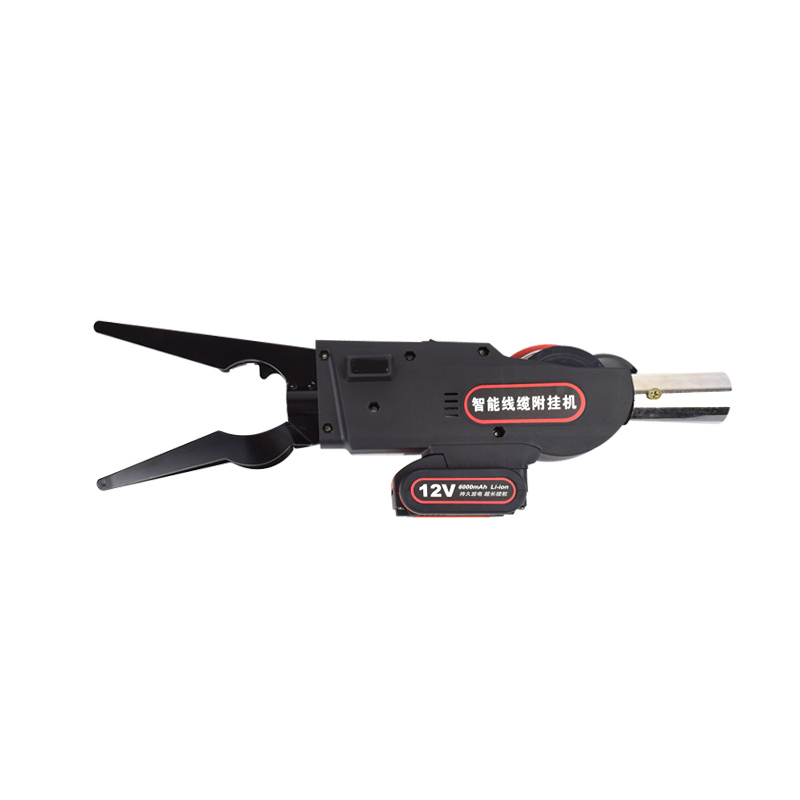

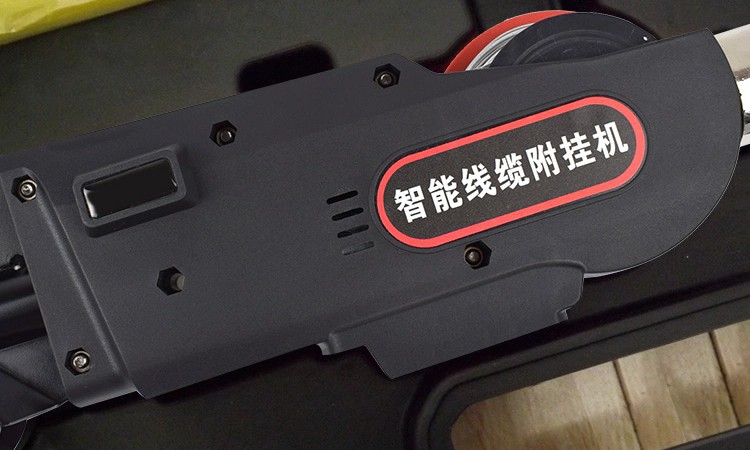

The optical cable wrapping machine is a hand-held fast climbing tool for attaching cables. It can automatically complete the cables by placing internal circuit components such as controllers. The multiple steps of attaching and bundling can be widely used in aerial work in the field of communication engineering Replaces traditional manual attachment of cables.

Product Operation

Product advantage

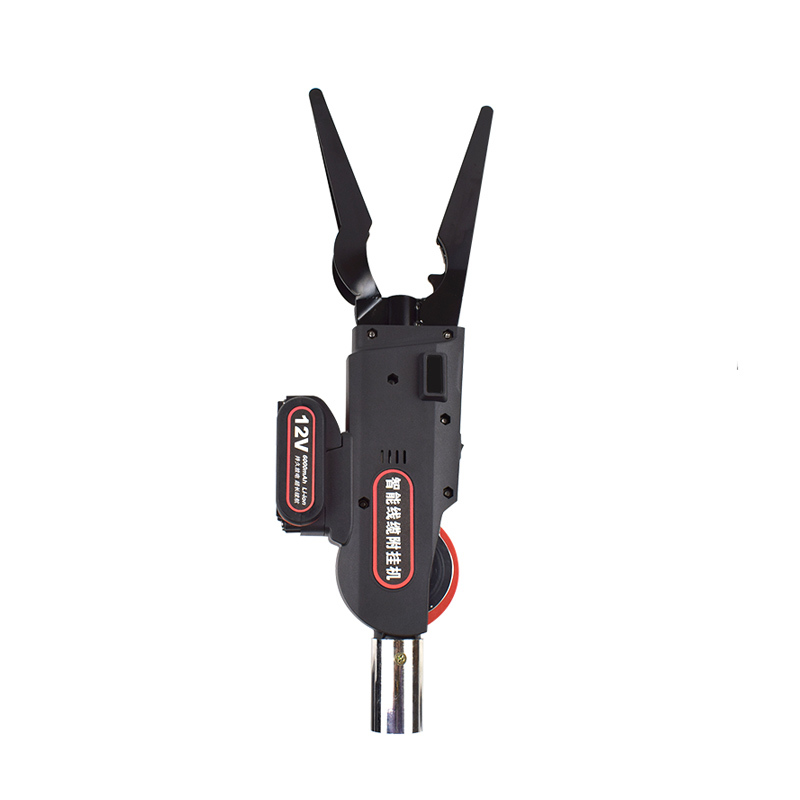

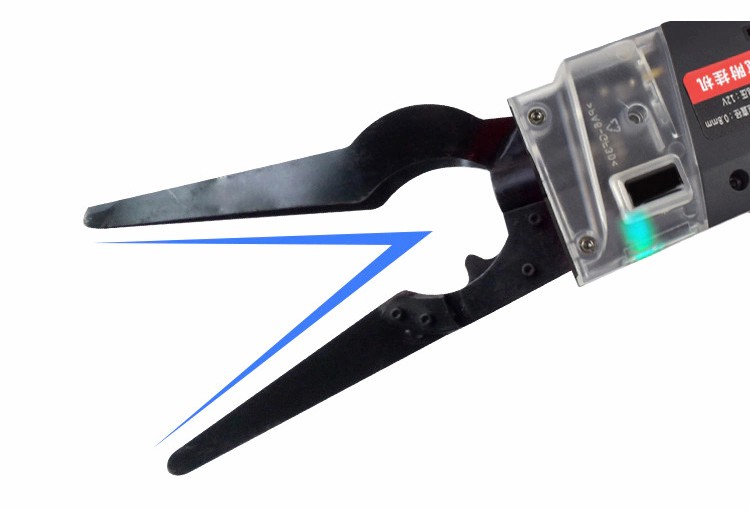

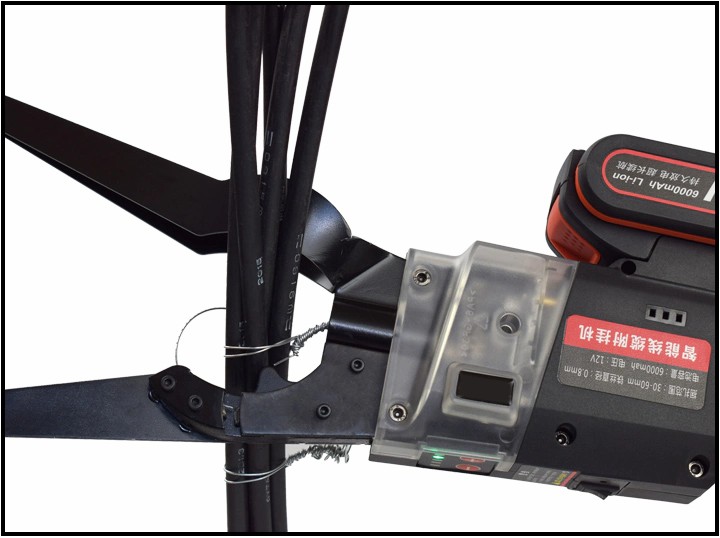

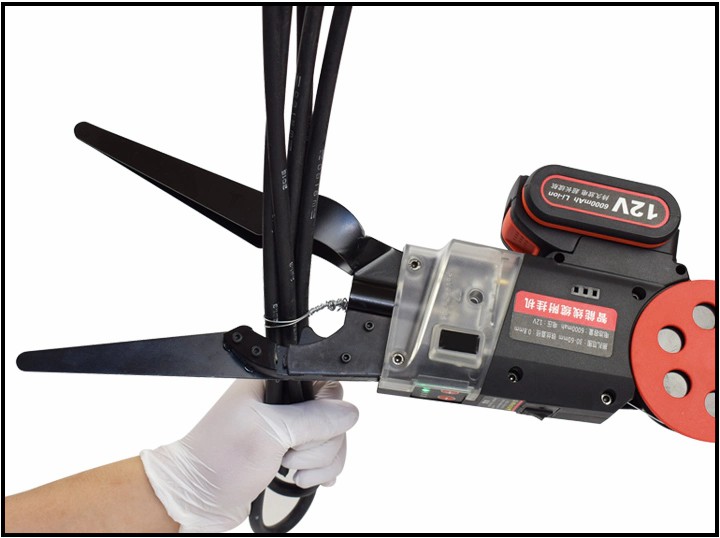

Classic Y-shaped head

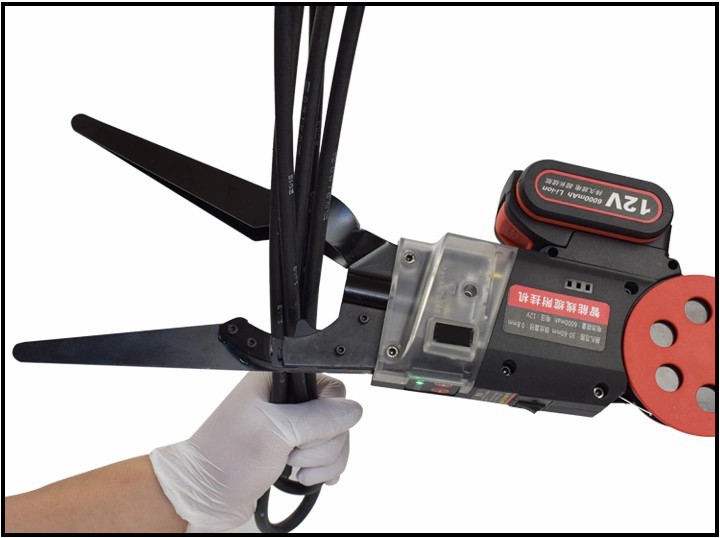

8-12 optical cables can be bundled at a time, the optical cables are easy to place

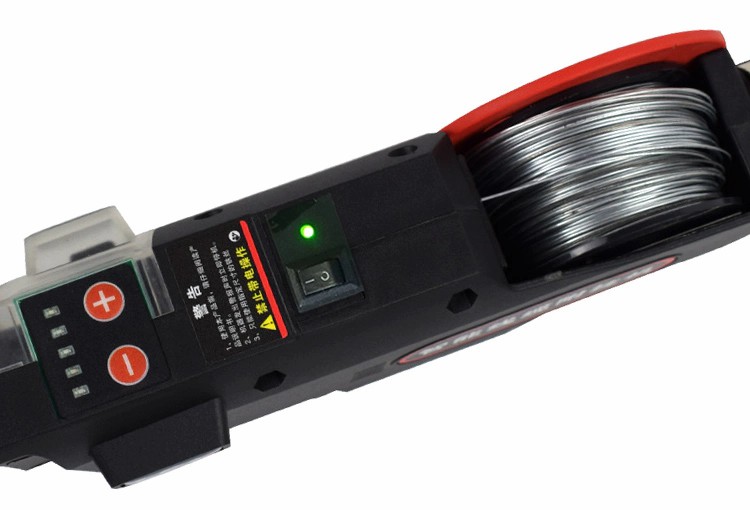

Switch operation

The green light is on, indicating that work is ready

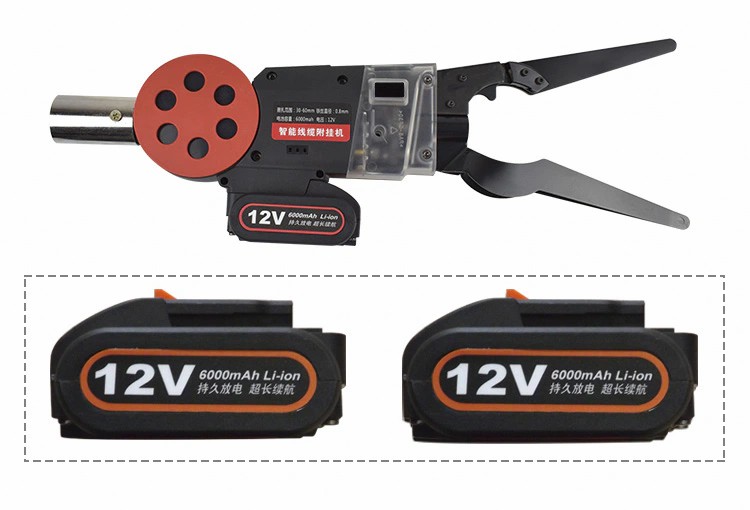

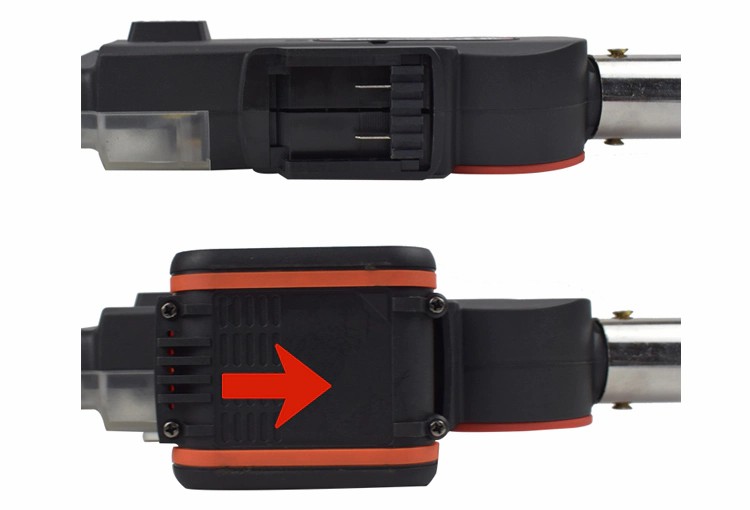

Battery placement

Can be operated more than 1500 times at a time, and can be bundled for about 3 kilometers

Easy battery installation without disassembly

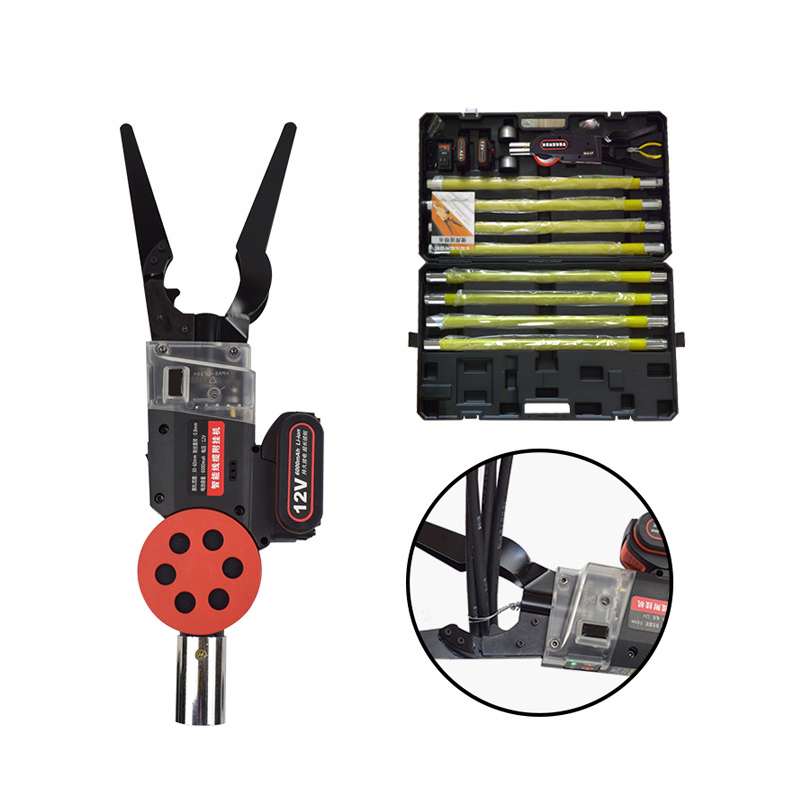

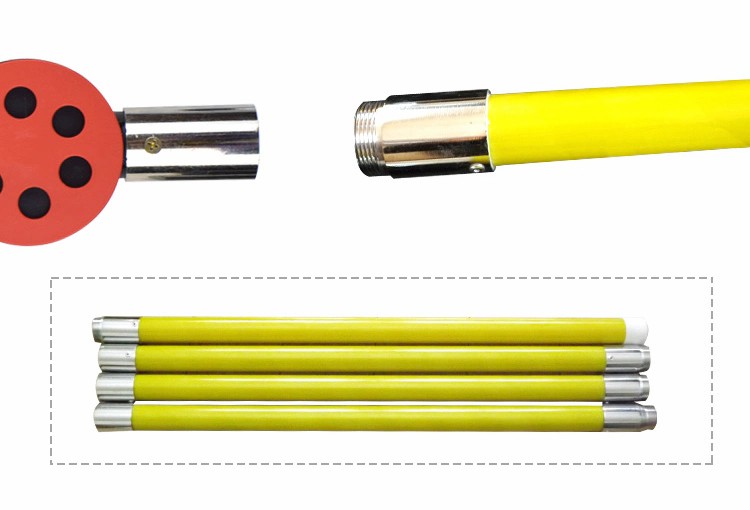

Super strong insulation rod

Adopt epoxy glass fiber reinforced plastic high-voltage insulation rod, each section is 0.75 meters, light and firm

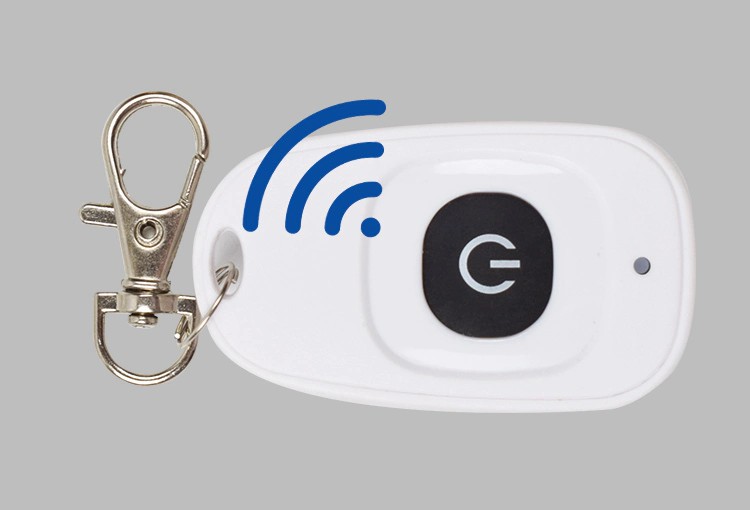

Wireless remote control

Switch Remote control distance: 20 meters open, can be used across the wall

Product parameters

Wrapping Diameter	8-58mm
Wire diameter	0.85mm, 110 meters per plate, 300-500 mm at a time, bundled at a distance of 50 cm, and can be tied for about 180 meters. If the old line is repaired, the indeterminate spacing can be used for more than a few kilometers.
Rod	Can be insulated 10KV, the material is made of insulated glass epoxy tube, 1.2 m / pc*8
Wrapping time	0.6s
Charging time	1.5hour
Remote control switch	Size 62mm30mm12mm, remote control distance is 20 meters, can be used as partition wall.
Battery	6000 mAh/pc*2, fully charged, one battery can work more than 1500 times, probably attached to more than 3 kilometers.

Application

Maintenance in Telecom

Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements
