Product Brief

——

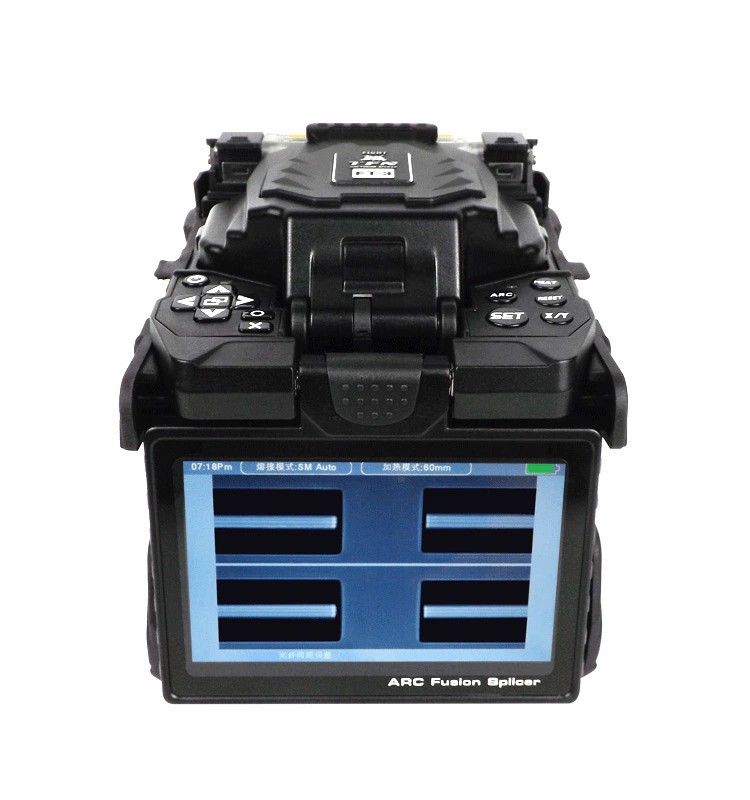

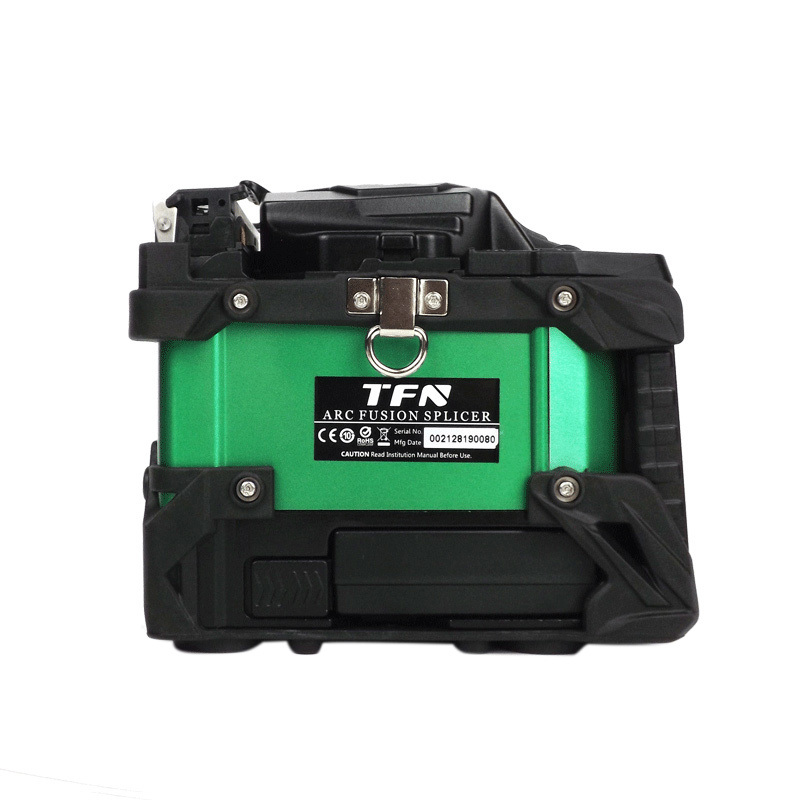

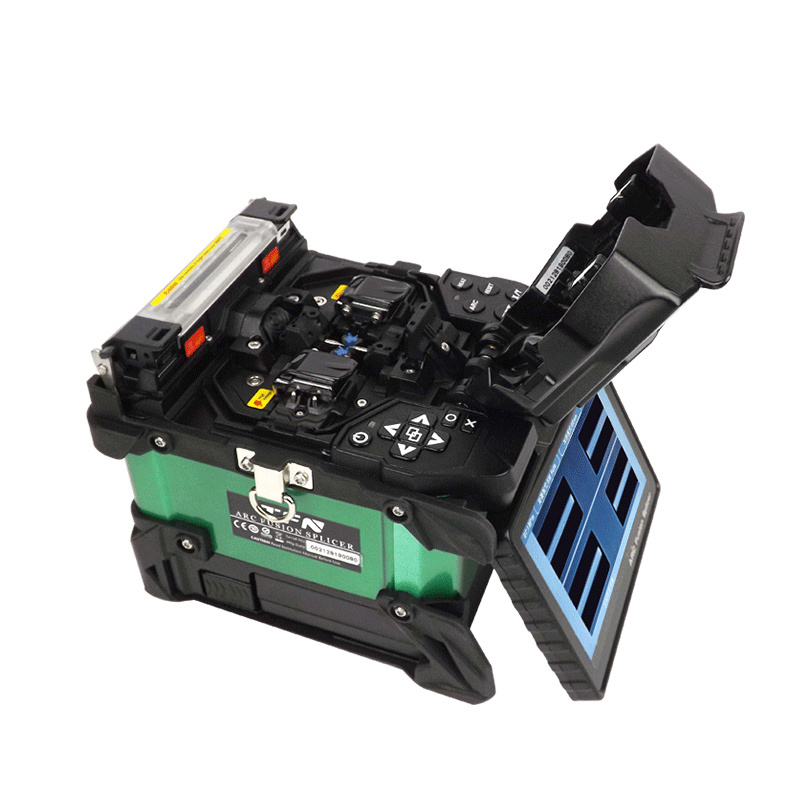

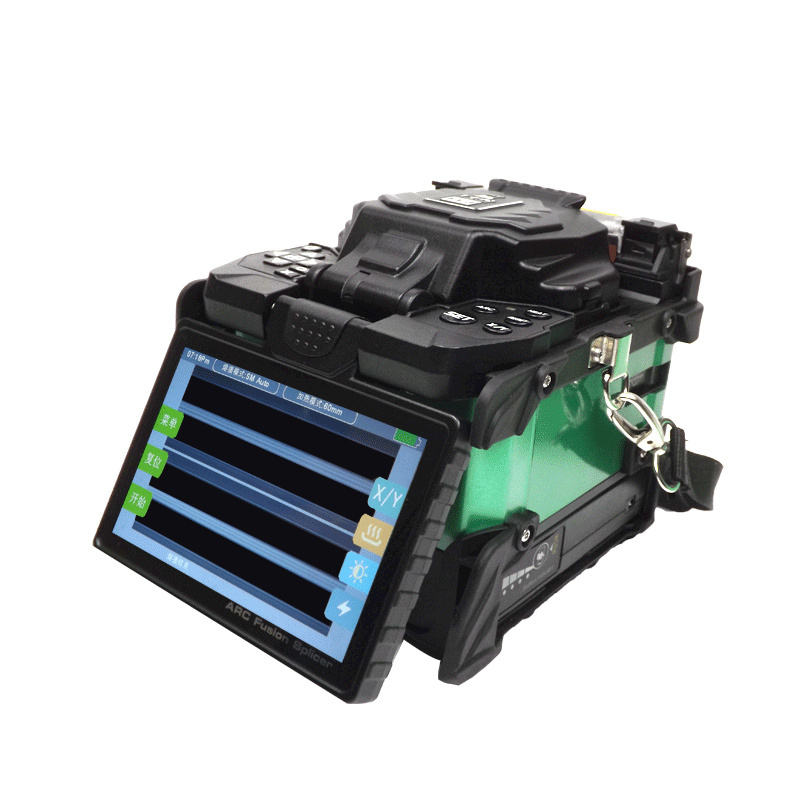

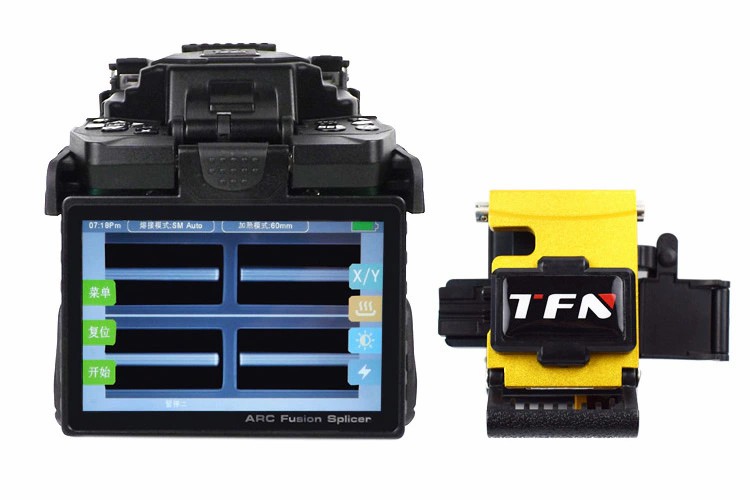

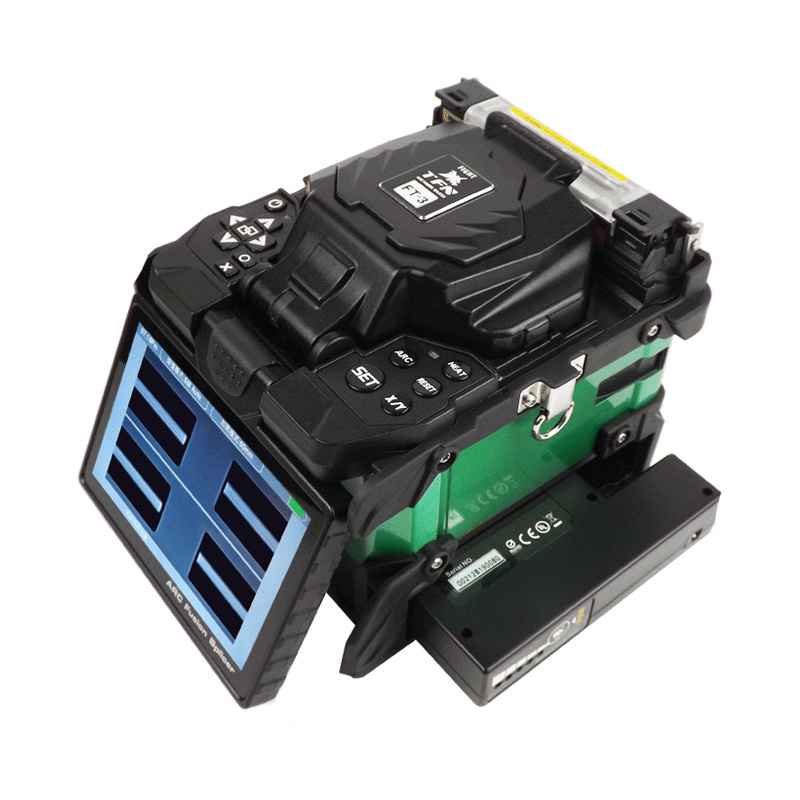

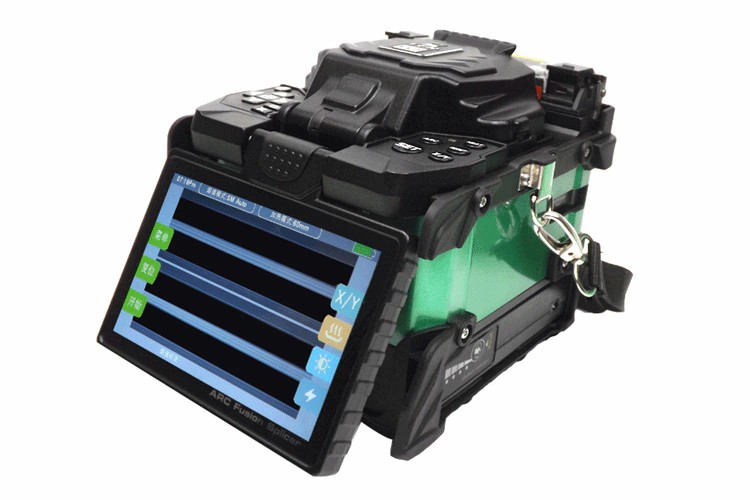

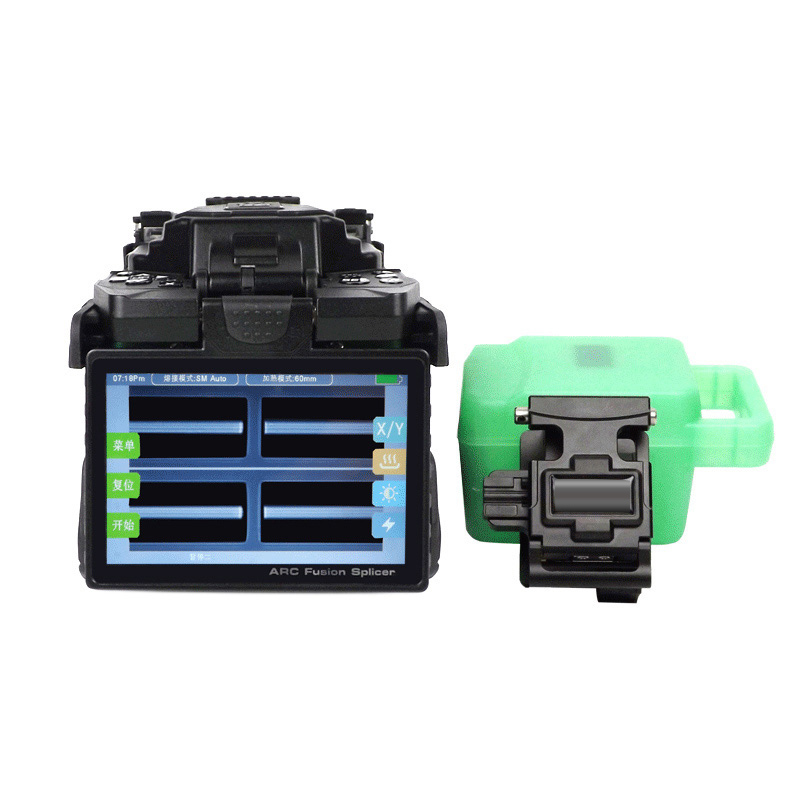

FT3 06motors fusion splicer The optical fiber fusion splicer is mainly used for the construction and maintenance of optical cables in optical communications, so it is also called optical cable fusion splicer. The general working principle is to use a high-voltage arc to melt the two fiber sections while using a high-precision motion mechanism to gently advance the two fibers into one, so as to achieve the coupling of the fiber mode field.

Product advantage

Auto fusion fiber mode

Open the automatic fusion fiber mode to embody the humanized concept

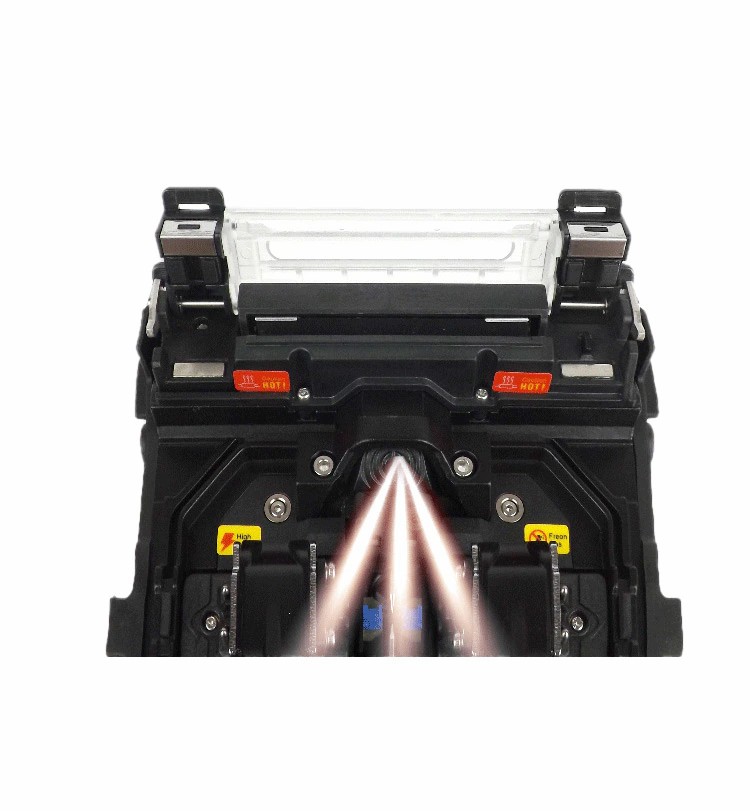

High power LED white light

Three high-power LED white lights are more convenient for night operation

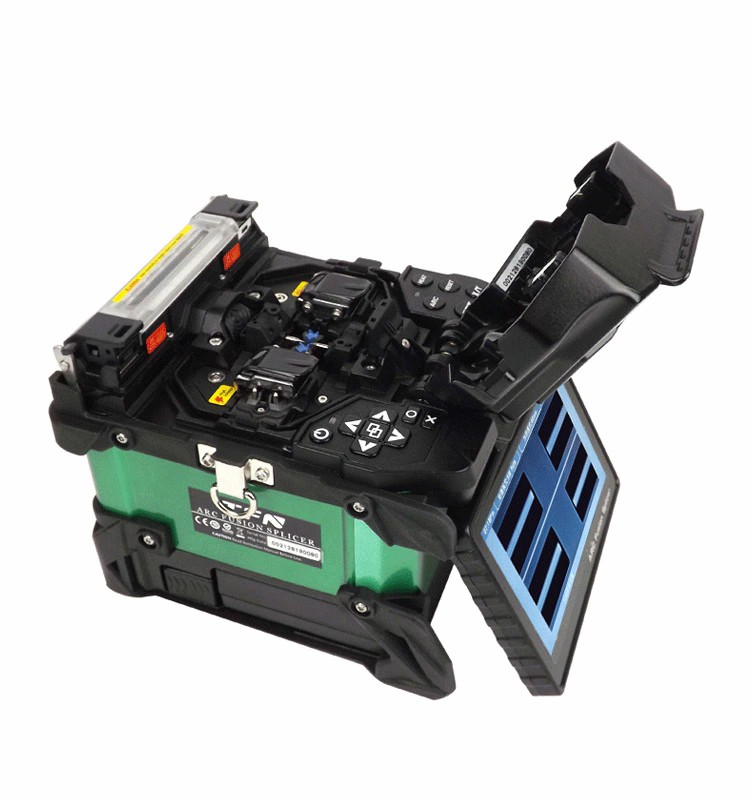

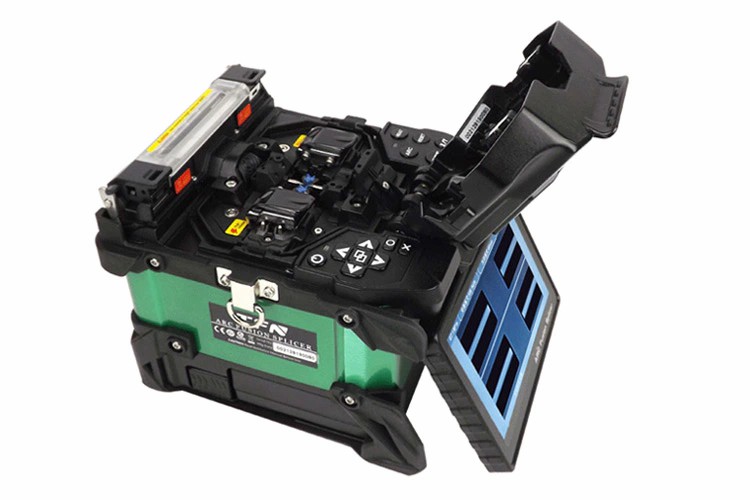

Alignment of six motor cores

Alignment of visible fiber core with 500 times focusing amplification

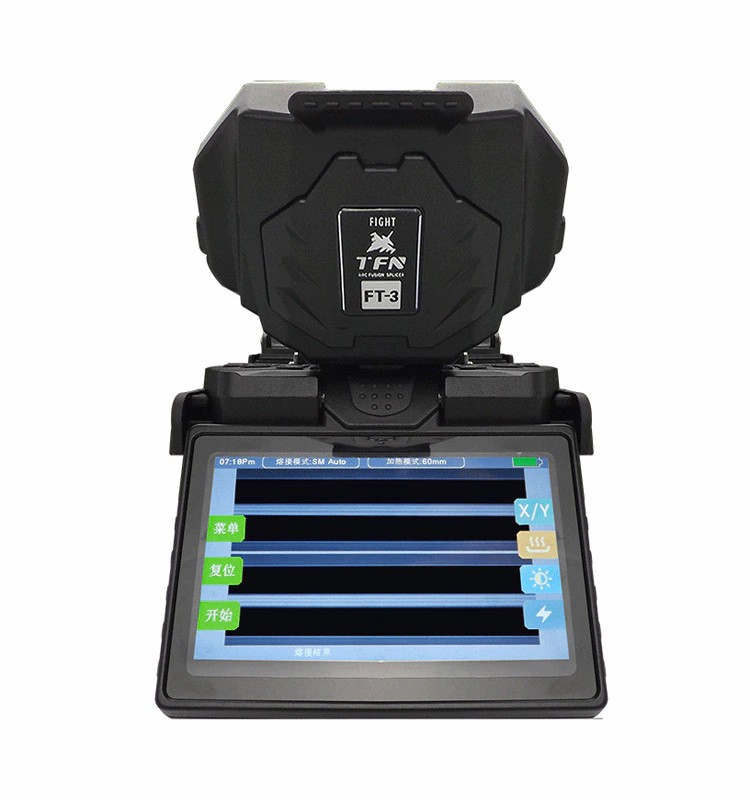

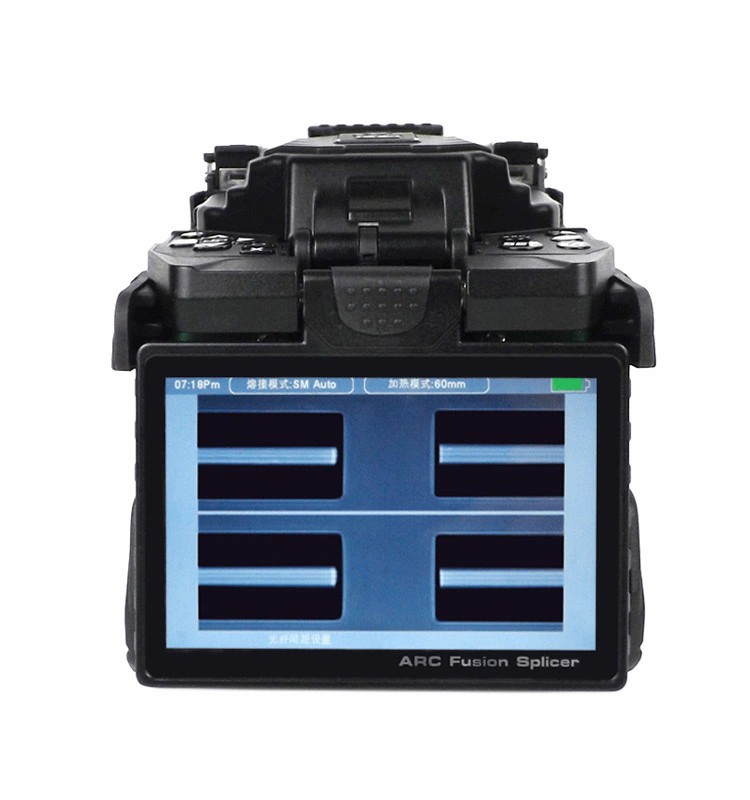

High definition capacitive touch screen

5.0 inch high resolution color capacitive touch screen

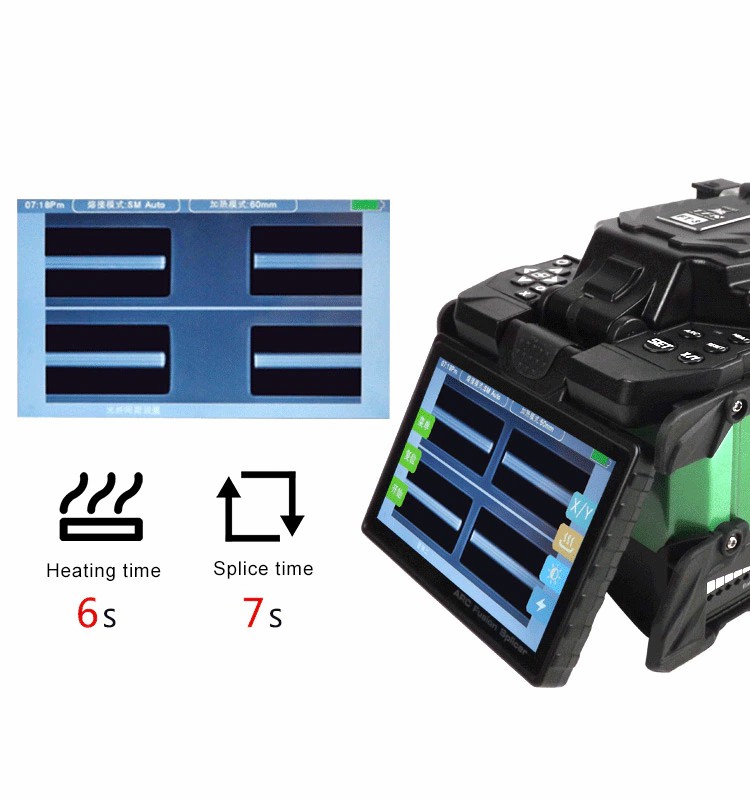

Rapid fusion heating

Typical welding heating times are more than 240

Original imported electrode

Imported tungsten steel is solid and durable

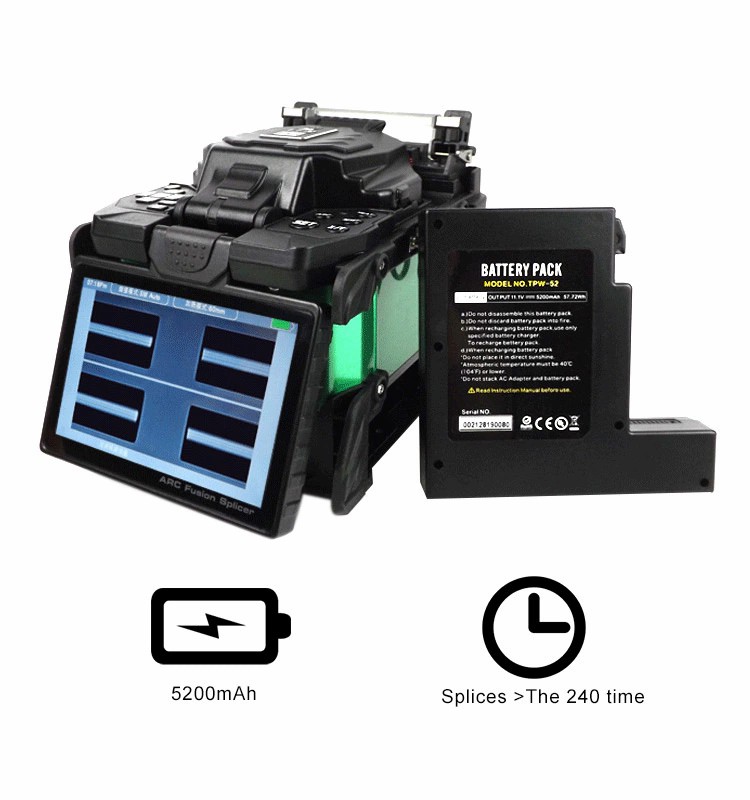

Large capacity lithium battery

Capacity up to 5200 MA

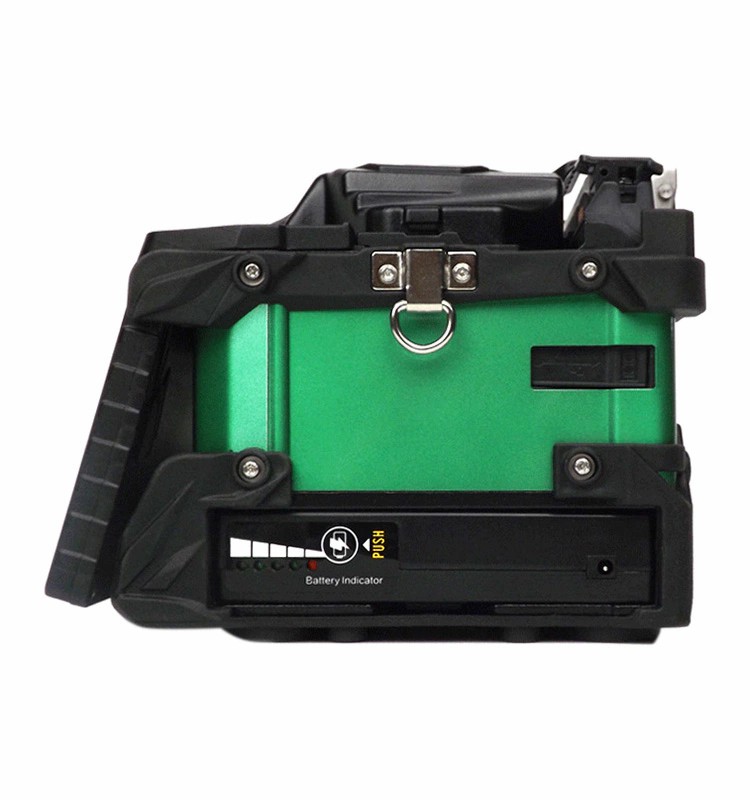

Electricity information

Check the remaining power at any time to avoid power failure during work.

Product parameters

Average Splice Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF)
Return Loss	≥60dB
Tension Test	2.0N (200gf) (Standard)
Typical splicing time	7 seconds, fast mode: 06s
Typical heating time	10-900 seconds, fast mode: 07s
Splicing Program	128 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish
Operating Conditions	-10~+50°C(operation temperature), 0~95% RH (humidity), 0~5000m (altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC), Inner lithium battery: 11.1V, 5.2AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 300 times magnification, or Simultaneously 150 times
Storage of Splice Result	2,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Operation Mode	Touching screen, keyboard
Battery capacity	240 circles
Dimensions	145(W)165(D)145(H)mm;
Weight	1965g

● Equipped with 06 motors. ● Upto 2000 pcs fusion records storage. ● 128 fusion mode pre-set. ● Fast fusion mode: 06s.

Product model	FT-3	Battery capacity	5200 mAh
Product weight	1965G (Containing battery)	Electrode life	The 5000 time
Product volume	145165145mm (WLH)	Fiber alignment	Core alignment

Application

——

● FTTH, CATV, LAN, MAN, WAN, Test Measurement

● Active Device Termination

● Premise Installations

● Telecommunication and Data processing Networks

● Video transmission, Data transmission
