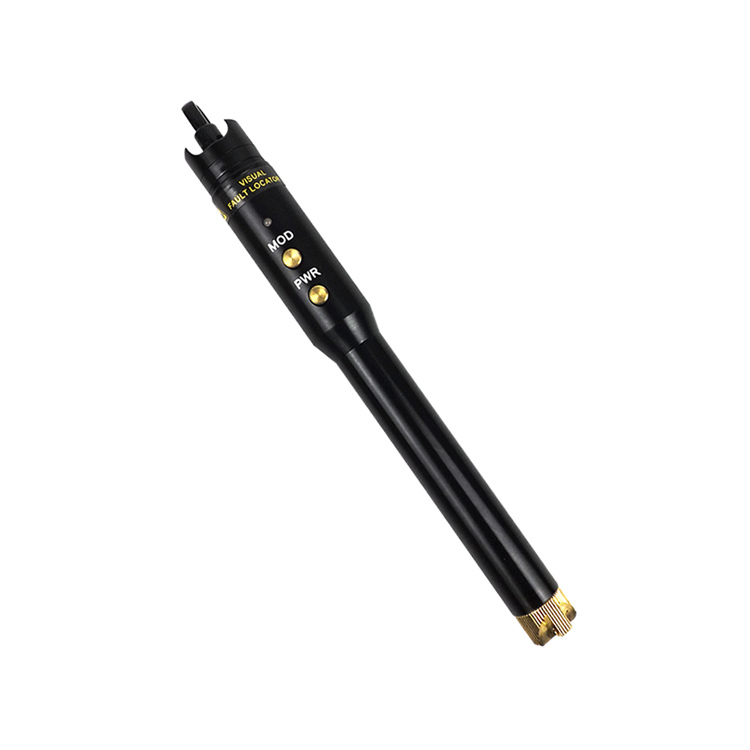

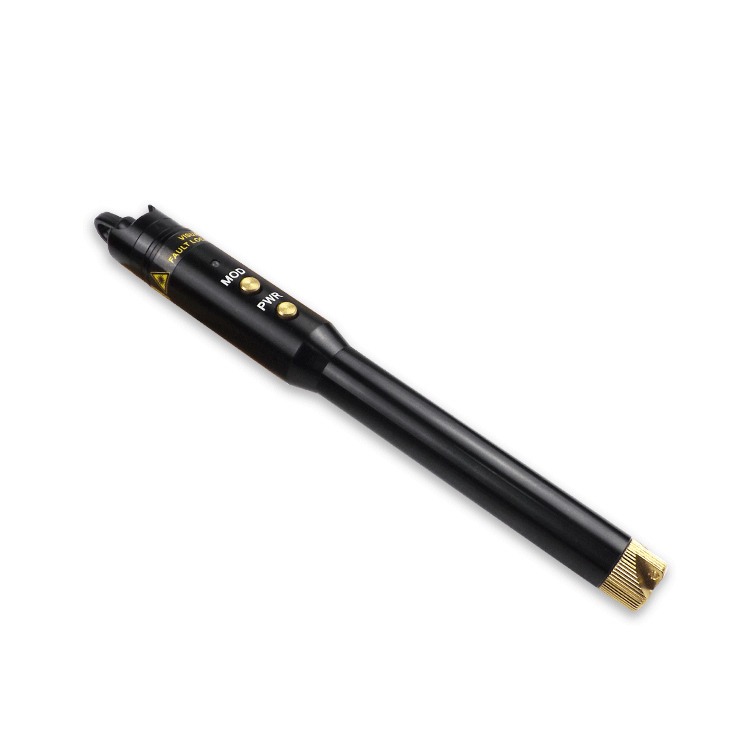

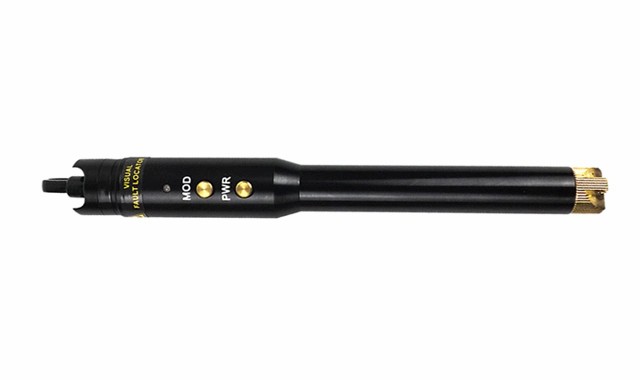

FOT3105 VFL (Red light source) Fiber Optic Cable Tester

Model:
FOT3105 VFL

Minimum order quantity:
10

Payment Methods:
T/T

Delivery Time:
10 Days

Port of departure:
Qingdao

Connector:
Universal

Options:
1mw / 10mw / 20mw / 30mw

Inquire Online

Product Brief

——

VFL are also called light pens, pen-type red light sources, visible light detection pens, optical fiber fault detectors, and optical fiber fault locators. Most of them are used to detect fiber breakpoints. According to their shortest detection distance, they are divided into: 5Km, 10Km, 15Km, 20Km, 25Km, 30Km, 35Km, 40Km and so on. Driven by a constant current source, a stable red light is emitted, which is connected to the optical interface to enter the optical fiber, thereby realizing the optical fiber fault detection function.

Product Features

Metal Shell, anti shock and durable

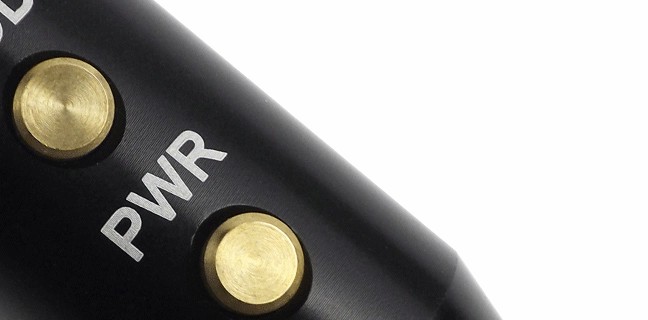

Humanized design Comfortable grip

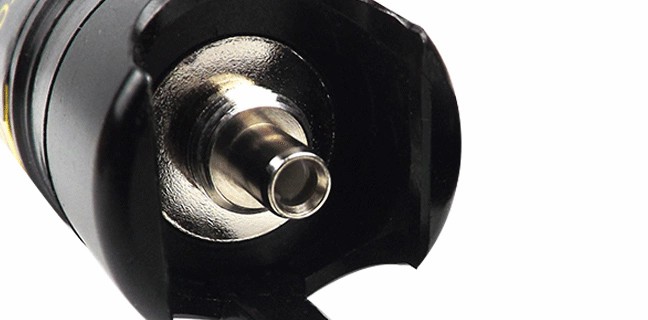

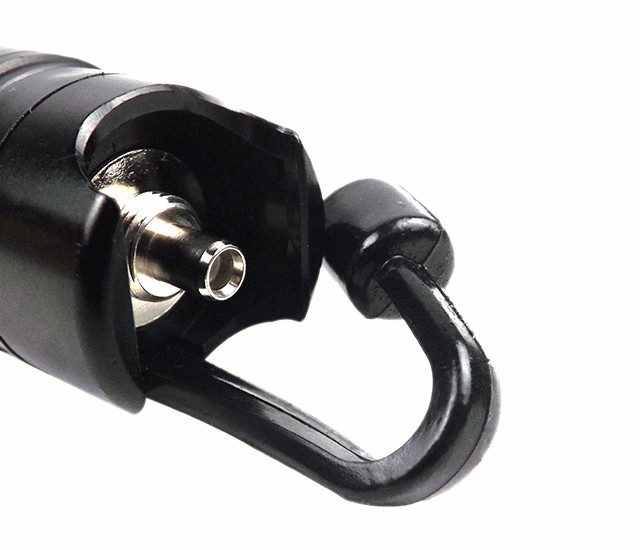

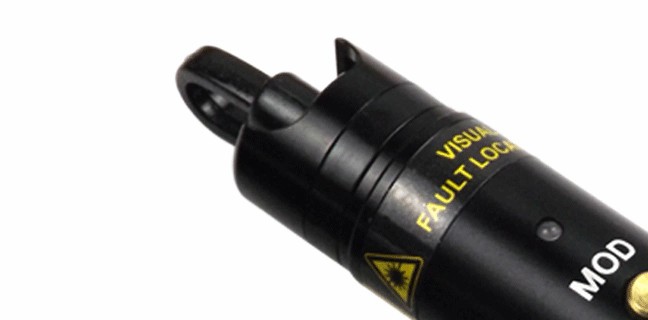

2.5mm universal connector

Energy-saving design

Product advantage

Product parameters

Type	FOT3105 Pen-type Visual Fault Finder
Central Wavelength	650nm±10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power	Optional choice for 1mw, 10mw or 20mW
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz

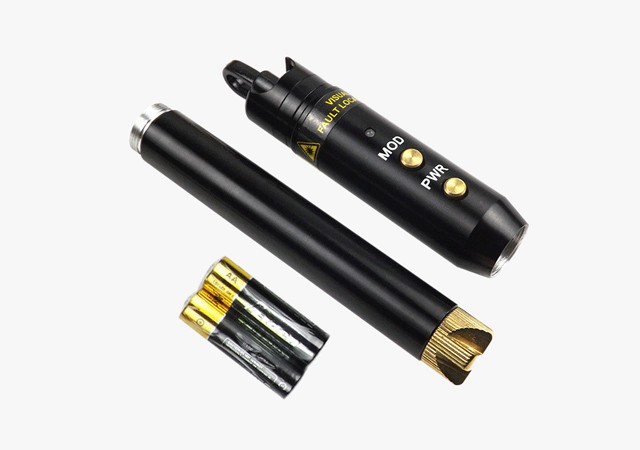

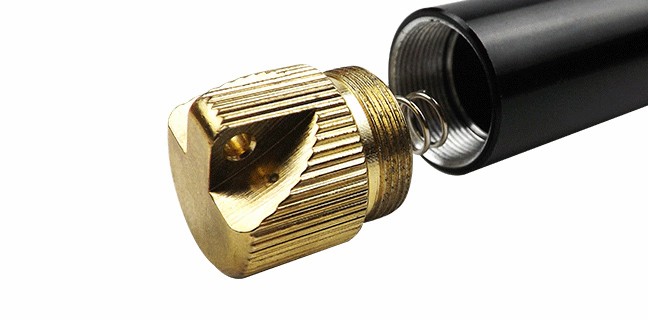

Power Supply	2 AA alkaline batteries
Battery Operating Time	650nm@1mw ≥65hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature	-10~+45 (℃)
Storage Temperature	-40~+70 (℃)
Dimension (mm)	￠15X180
Weight	120g(Without battery)

Application

Maintenance in Telecom

Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements
