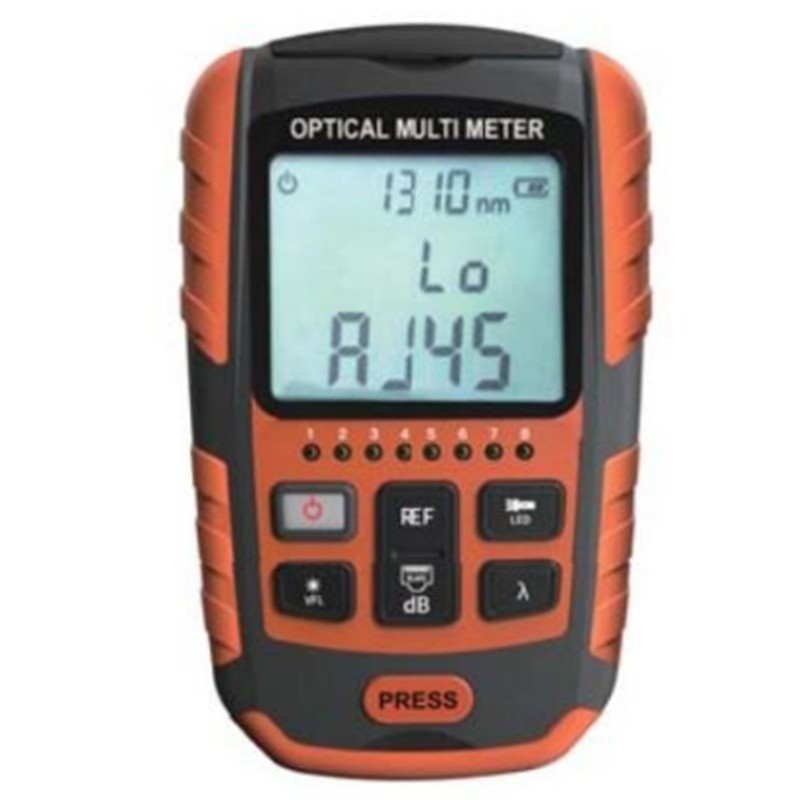

FOT3201 Mini Optical Power Meter

FOT3201 series OPM and VFL all-in-one machine are controlled by single chip microprocessor with complete functions. It can be well protected by using embedded detector and laser. It has 10 standard wavelengths, such as 1270nm/1577nm. It also has frequency identification, automatic shutdown function, CW/1Hz/2Hz red light modes, wavelength memory, user calibration, and RJ45 network cable sequence and tracking test function

FOT260 series is mainly used for continuous optical signal, continuous modulation optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, Optical CATV and other fields.

Inquire Online

——

Optical power meter
Wavelength range	800~1700nm
Connector	Universal joint FC/SC/ST
Detector type	In GaAs
Power test range	-70~+10dBm -50~+26dBm
Uncertainty	±5%
Standard wavelength	850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Display resolution	Linear display: 0. 1%, logarithmic display 0.01dBm
Recognizable frequency	270Hz、330Hz、1kHz、2kHz
Optical power meter
Wavelength	650nm±30nm
Output power	2mw/10mw/30mw/50mw
Mode	CW/1Hz/2Hz
Connector	Universal joint FC/SC/ST
RJ45 cable sequence(standard), cable tracking (optional)
Test distance	≤300m
Others
Power Supply	2 AAA batteries/Lithium battery, 3. 7V/700mAh(optional)
Port	Type C
Battery duration	≥120h(OPM)
Automatic shutdown time	10min
Working temperature	-10°c~+50°C
Storage temperature	-40°C~+70°C
Relative humidity	0~95% No condensation
Dimension	110mmx68mmx27mm
Weight	130g
Functions of Host: OTDR/VFL/ LS/OPM/Event Map/End Detection/Optical Loss Test/Ethernet test/ Remote test/File management
