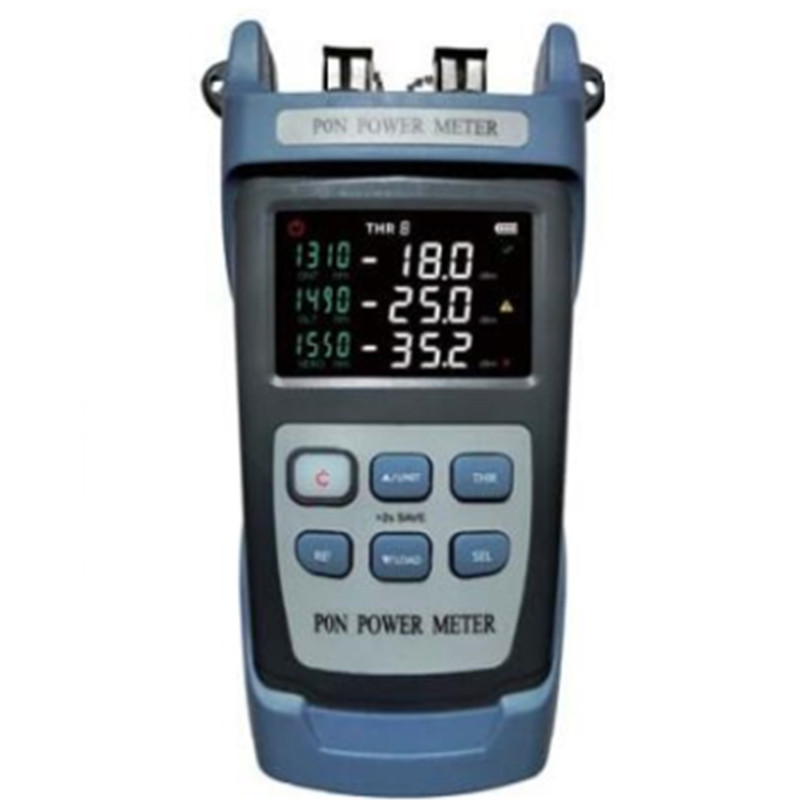

FOT3214 PON Power Meter

FOT3214 PON power meter integrates FTTX/PON power meter, Visible Fault Location, RJ45 line sequence and length test, line tracker test, which is suitable for verifying, opening and maintaining BPON, GPON and EPON networks. As a new generation of intelligent hand-held instrument, PON power meter has"pass/fail"optical fiber certification detection function by setting different thresholds corresponding to different wavelengths, so as to

ensure that service providers can improve system performance life by verifying network connectivity, so that engineering contractors have high-level key certification tools to provide reliable network engineering to customers.

Inquire Online

——

PON OPM
Wavelength	1310±50mm	1490±15nm	1550±10nm
Isolation 1310nm	--	>40dB	>40dB
Isolation 1490nm	>40dB	--	>40dB
Isolation 1550nm	>40dB	>40dB	--
Measuring Range	-35~+10dBm	-40~+12dBm	-40~+25dBm
Uncertainty	≤0.5dB
Insertion Loss	≤1.5dB
Detector type	IngaAs
Display Resolution	0.01dB
Fiber type	SM9/125μm
Threshold setting	10groups
Connector	FC/UPC (Interchangeable SC、ST)
Others
Display	Color LCD
External storage	10
Power Supply	Three 1.5v AA batteries
Battery Life	Standby >20h; Measuring time>12h
Operating Temperature	-10°C~+50°C
Storage temperature	-40°C~+70°C
Relative Humidity	0-95%Non Condensing
Size	186mm×100mm×50mm
Weight	150g
