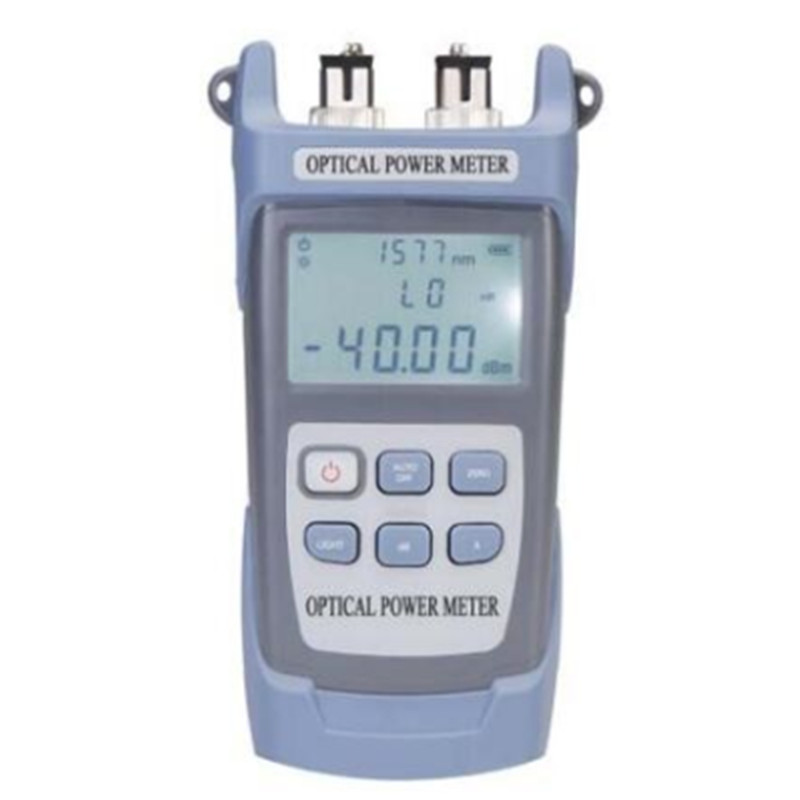

FOT3218 10G Wavelength Division Optical Power Meter

FOT3218 series OPM with separated wavelengths are mainly used for the installation, test and maintenance of FTTH Optical Access Network. When there are multiple wavelengths of optical signals in an optical fiber, the traditional OPM can not identify the wavelength. Different from the traditional OPM this series can identify the wavelength and give the power value of each wavelength in the fiber at the same time.

It is mainly used for the power measurement of the downlink signal 1490nm, 1577nm and 1550nm in 10GEPON/XGPON and RF network, so that the installation and maintenance personnel can truly grasp the power value of the single wavelength optical signal and accurately judge whether the optical power value meets the standard.

Inquire Online

——

10G PON OPM
Application scenarios	GPON/EPON	10GEPON/XGPON	RF
Wavelength	1490nm	1577nm	1550nm
Isolation	>35dB	>35dB	>35dB
Measuring rang	-40dBm~+10dBm	-40dBm~+10dBm	-40dBm~+26dBm
Uncertainty	±0.5dB
Connector	Universal joint
Detector type	IngaAs
Display Resolution	Linear display: 0.1% Logarithmic display: 0.01dBm
Others
Power Supply	3AA batteries/Rechargeable lithium battery, 2400mAh(optional)
Automatic shutdown time	10min
Battery duration	72h(OPM)
Working temperature	-10°C~+50°C
Storage temperature	-40°C~+70°C
Relative humidity	0~95% No condensation
Dimension	0-95%Non Condensing
Size	186mmx100mmx50mm
Weight	240g
