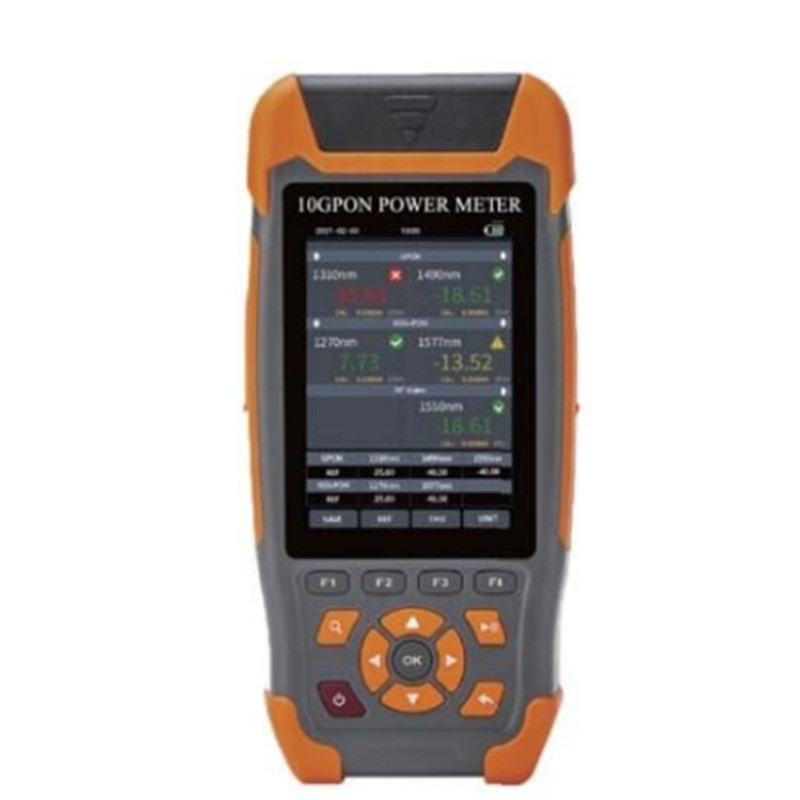

FOT3402 10G PON Power Meter

FOT3402 can measure the power of GPON/EPON and XGPON/XGSPON network uplink and downlink signals, including uplink

1270/1310nm signal, and downlink 1490/1550/1577nm signal. It integrates 5 functions, such as VFL, RJ45 Cable sequence, length and tracking test. It can simultaneously test and judge the optical power value of voice, data and video signals. It can measure all PON

signals, and measure each wavelength separately. It is an ideal choice for PON network engineering, construction and maintenance. It has the function of"Pass/Fail"optical fiber authentication detection by setting different thresholds corresponding to different wavelengths, which ensures that service providers can improve the system performance by verifying network connectivity. So engineering contractors have high-level key authentication tools to provide customers with reliable network engineering.

Inquire Online

——

Product Features;

l Support GPON/EPON/XGPON/XGSPON/RF video signal simultaneous measurement

l Power division measurement of downlink signals at 1490/1550/1577nm

l Power division measurement of uplink 1270/1310nm burst signals

l Support the synchronous test of experimental voice, data and video signals on PON architecture

l The instrument can set PASS/FAIL threshold and calibration wavelength

l Data can be saved and viewed, up to 1000 pieces are supported

10G PON OPM
Wavelength	1270±10nm	1310±10nm	1490±10nm	1550±10nm	1557+10nm
Measuring Range	-35~+10dBm	-35~+10dBm	-40~+12dBm	-40~+25dBm	-40~+12dBm
Isolation	>40dB
Uncertainty	≤0.5dB
Insertion Loss	≤1.5dB
Detector type	InGaAs
Display Resolution	0.01dB
Fiber type	SM9/125μm
Connector	SC/UPC (Interchangeable SC/ST)
VFL
Wavelength	650nm±20nm
Output power	≥10mW
Mode	CW/1Hz/2Hz
Connector	Universal joint FC/SC/ST
RJ45 Cable Length/Sequence/Tracking
Measuring Range	≤300m
Others
Display	3.5 inches TFT LCD, 320 *480
Storage	≤1000
Interface	Micro USB
Power Supply	Polymer Li-Battery: 3.7V, 4000mAh; Adapter: 5VDC, 2A
Battery Life	Standby>20h; Measuring time >12h
Operating Temperature	-10°C~+50°C
Storage temperature	-40°C~+70°C
Relative Humidity	0-95%Non Condensing
Dimensions	173mm×82mm×37mm
Weight	350g
Functions: PON OPM/FL/RJ45 Sequence/RJ45 Line Tracker(Additional purchase detector)/RJ45 Cable length/ Flashlight
