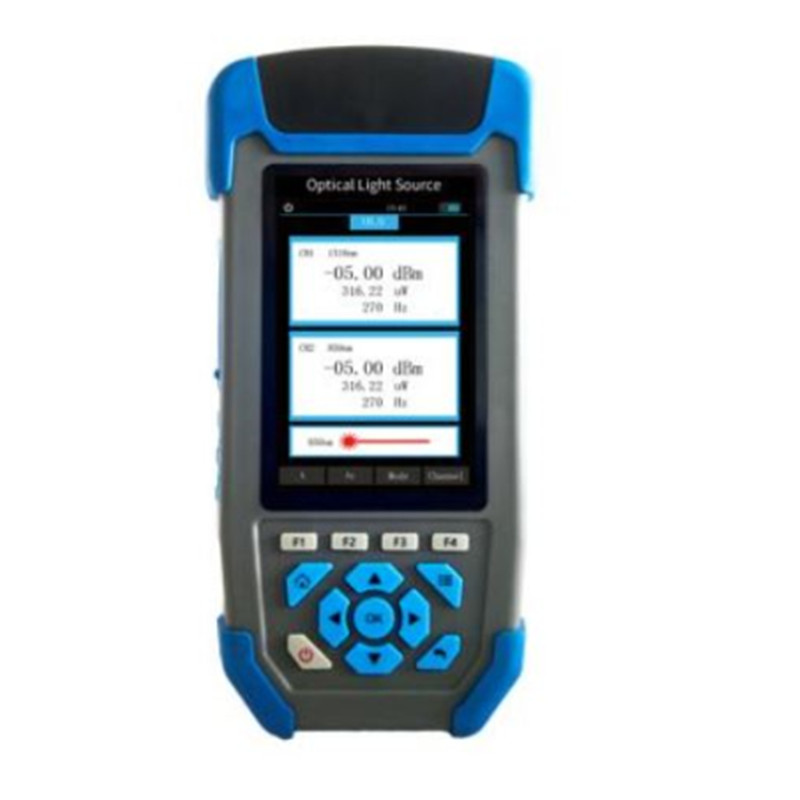

FOT3120 is a 3.5-inch color screen version of the newly developed light source with adjustable output power. It can provide up to six-wavelength light source output, with a continuous 15dB power adjustable range, and can choose single-channel and dual-channel output. It is matched with our company. The power meter has the function of automatically identifying the wavelength when in use, which can conveniently and accurately measure the loss of the optical fiber link.
——
Specification
Product name | FOT3120 Tunable Light source |
Default wavelength (nm) | 1310/1550 (customizable) |
Spectral width (nm) | ≤5 (customizable) |
Typical output power (dBm) | -5 |
Stability (dB, 15min) | ≤0.05 |
Adjustable range of output power (dB) | -5～-20 |
Adjustable power minimum step (dB) | 0.05 |
Modulation frequency (HZ) | CW, 270, 330, 1K, 2K |
Interface Type | (FC/SC)/PC (customizable) |
Display | 3.5 inch TFT color screen |
Visual fault locator (optional) | |
Wavelength (nm) | 650 |
Output power (mW) | 1 |
other parts | |
Power supply | 3.7V 4000mAh lithium battery/Micro USB |
Automatic shutdown time (min) | Can be set by yourself |
Communication Interface | Micro USB |
Continuous working time (H) | ≥25 |
Size(mm) | 188×88×44 |
1.3.5 inch color screen display
2.Maximum support 6 wavelength output
3.Support user self-calibration
4.Support single channel or dual channel output
5.Continuously adjustable output power
6.Wavelength automatic identification function
7.Support continuous light CW and modulated light output
8.Support visual fault locator (optional
