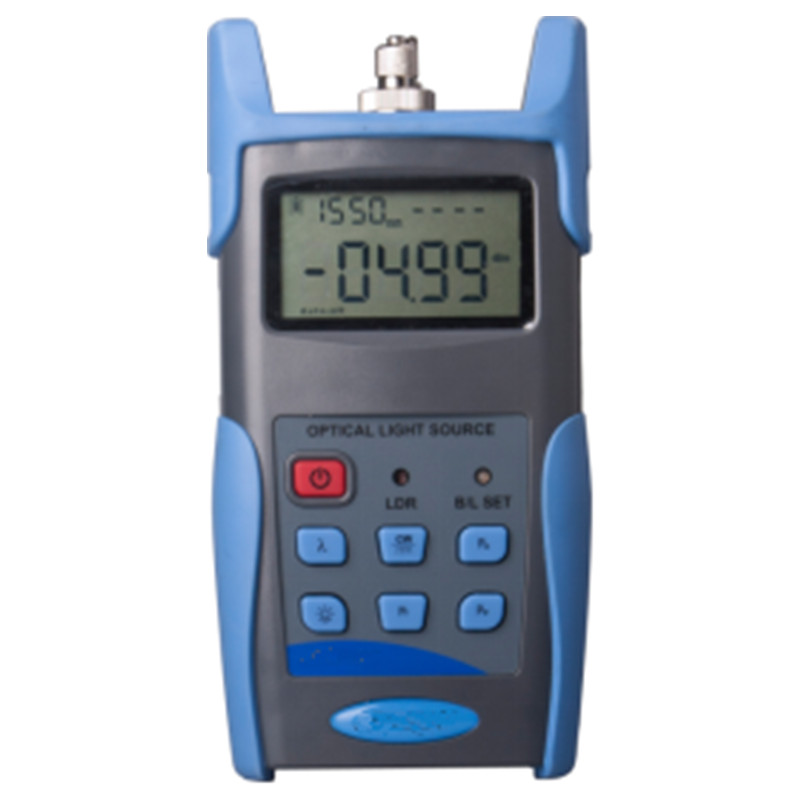

FOT3116 Hand held Adjustable Light Source is FOT newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance.
——
FOT3116 Hand held Adjustable Light Source is FOT newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with FOT3216 hand held optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The FOT3116 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the FOT3116 features good appearance, good touch feeling and considerate humanity design.
Specifications
Model | FOT3116 |
Operating wavelength（nm） | 1310/1550;1310/1490/1550/1625（others specify on requests） |
Applicable fiber | SM，MM |
Laser type | FP-LD(others specify on requests) |
Output Power（dBm） | -5~-12dBm （can be adjustable） |
Adjustable step size（dBm） | ＜0.5 |
Stability(dB，30min，20℃) | 0.15 |
Modulation（Hz） | CW， 270，330，1K，2K |
Fiber Port | FC/PC |
Alkaline Battery | 3*AA，1.5V |
Power Supply Adaptor(V) | 8.4 |
Battery Operating time(h) | 45 |
Operation Temperature(℃) | -10～+60 |
Storage Temperature(℃) | -25～+70 |
Outline size（mm）/weight | 180*90*45(250g) |
Features
* Wave ID information can be transmitted when used with FOT3216 Optical Power Meter.
* Tone generation, 270HZ,330HZ,1KHZ,2KHZ
* Output power can be adjustable
* Output power value is shown on LCD display
* Intelligent back light control (light intensity can be adjusted properly according to ambient
light, which greatly reduced power consumption)
* AA alkaline and AC adapter for power supply
* Low battery indication
