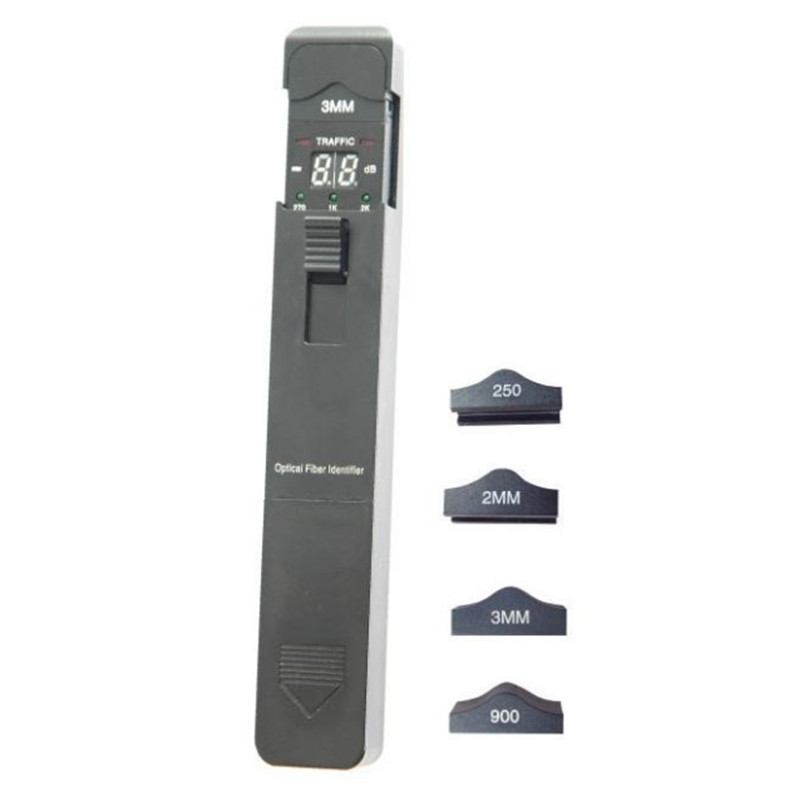

FOT3306B Optical Fiber Identifier

FOT3306B Optical Fiber Identifier is an essential instrument for the installation and maintenance of optical fiber projects. It can easily detect any spot of SM fiber cables. Through inserting a 1310 or 1550 modulated signal into the fiber, it is used to indicate the direction of the transmitting signals, find and locate the specific fiber without interrupting the current work during the installation, cabling and maintenance.

Inquire Online

——

Features

Compact size, universal connector and mental material

Efficient identification without interrupting the current work.

H0.25 to test bare fibers, ribbon and H0.9/H2.0/H3.0

Display the direction and level of the transmitting signal

Beep prompt function

Application

Telecom Projects

Optical Fiber CATV

Generic cabling system

Production and research of optical components

Specifications

Type	FOT3306
Identified Wavelength Range	800-1700 nm
Detector Type	Ø1mm InGaAs 2pcs
Identified Signal Type	CW、 270Hz，1kHz、2kHz
Detection sensitivity	-46--+10dBm(1310nm) -50--+10dBm(1550nm)
Adapter Type	H 0.9/0.25 for bare fiber; H 2.0/3.0 for pigtail
Insertion Loss	H0.25-H0.9： 1.0dB(1310nm)
	H2.0-H2.5： 0.5dB(1310nm)
	H2.5-H3.0： 0.1dB(1310nm)
Signal Direction	Left & Right LED
Signal Intensity Test Range	-30~0 (270Hz,1KHz)	Ø0.9, Ø2.0, Ø3.0,Ø0.25
	-25~0 (2KHz)	Ø0.9, Ø2.0, Ø3.0
	-20~0 (2KHz)	Ø0.25
Power Supply	9V(dry batteries)
Operating Temperature	-10－+50℃
Storage Temperature	-20－+70℃
Weight（g）	210
Dimension (mm)	2003027mm
