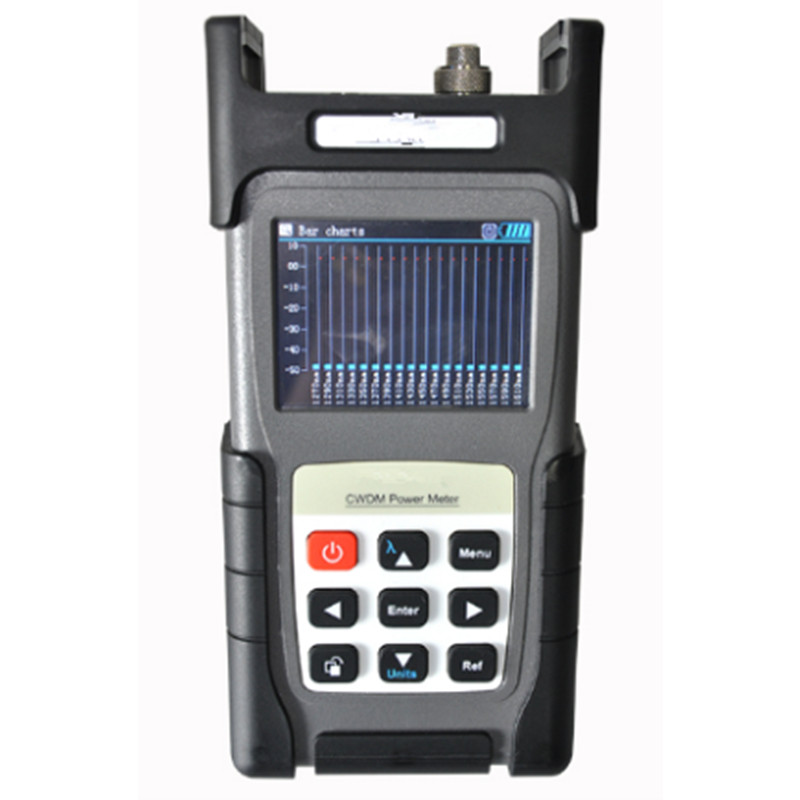

FOT3226A CWDM Power Meter

FOT3226A CWDM Power Meter is specially designed for CWDM system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.

——



Model

FOT3226A CWDM Optical Power Meter

Wavelength Range

1270 ~ 1610 nm

Number of Channels

18

Wavelength resolution

20nm

Measuring Wavelength (nm)

1270/1290/1310/1330/1350/1370/1390/1410/1430   1450/1470/1490/1510/1530/1550/1570/1590/1610

Dynamic range

+10 to -40dBm

Resolution

0.01dB

Optical interface

FC/PCF(FC, LC, ST available)

Operating Temperature

-10 to +60

Power supply

Rechargeable Battery/AC power adapter

Time of Operating

10h

Dimension

220cm*110cm*70cm

Weight

850g





Standard Packages

MODEL

INCLUDES

FOT3226A

FOT3226A, , USB cable, AC Adaptor, User Manual,   CD, Cotton swabs and Soft carrying case.




All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen.
This CWDM power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in CWDM system installation and maintenance.





Features

* Simultaneously test and show 18 wavelengths

* Friendly interface and easy operation

* Save and upload test results via USB port

* 1000 records

* Columnar graphics or list mode to show test data

* Color TFT-LCD display,high resolution 320*240

* Built-in clock and can edit test fiber number

* Quick start operation, requiring no warm-up time

* Light weight
