Specification

Model	FOT3302B
Type of optical fiber	Single –mode
Center wavelength	1310nm/1550n±20nm	1650nm(filter built-in)
Maximum dynamic range (dB) 1	30/28	28
Event blind zone 2	1.5m
Attenuation blind zone	8m
Display type	3.5inch, color LCD, touch screen operation
Optical interface	SC/APC ( or customized)
Test range (dB)	100m,500m,1km,2km,4km,8km 16km,32km,64km,128km
Pulse width	3，5，10,30,50,100,275 500,1000,5000,10000,20000ns
Range accuracy	± (1m + sampling interval +0.005% × distance)
Attenuation measurement accuracy	±0.05 dB/dB
Reflection measurement accuracy	±4dB
Data storage	≥ 1000 test traces
Communication interface	USB 2.0
VFL
Output power	≥2mW
Test distance	≥5 km
Environmental adaptability
Power supply mode	AC / DC adapter: AC: 100V ~ 240V (1.5A), 50/60Hz DC: 18V to 20V (2A) Internal lithium-ion battery pack: 7.4V, 4400mAh
Battery operation time 3	≥ 10hours
Operating temperature	-5℃ ～ 50℃
Storage temperature	-20℃ ～ 70℃
Relative humidity	0 ～ 95％, no condensation
Weight	≤ 1kg
Volume	208mm × 110mm × 56mm

Technical Specification of FOT3302 Smart OTDR

Note:

1. Ambient temperature 23℃±2℃, maximum test pulse width and the average number of times more than 500;
2. Test condition of blind zone (range 500m, pulse width 10ns and channel III), reflection loss of fiber end face ≥45dB, typical value;

Low brightness , not tested.

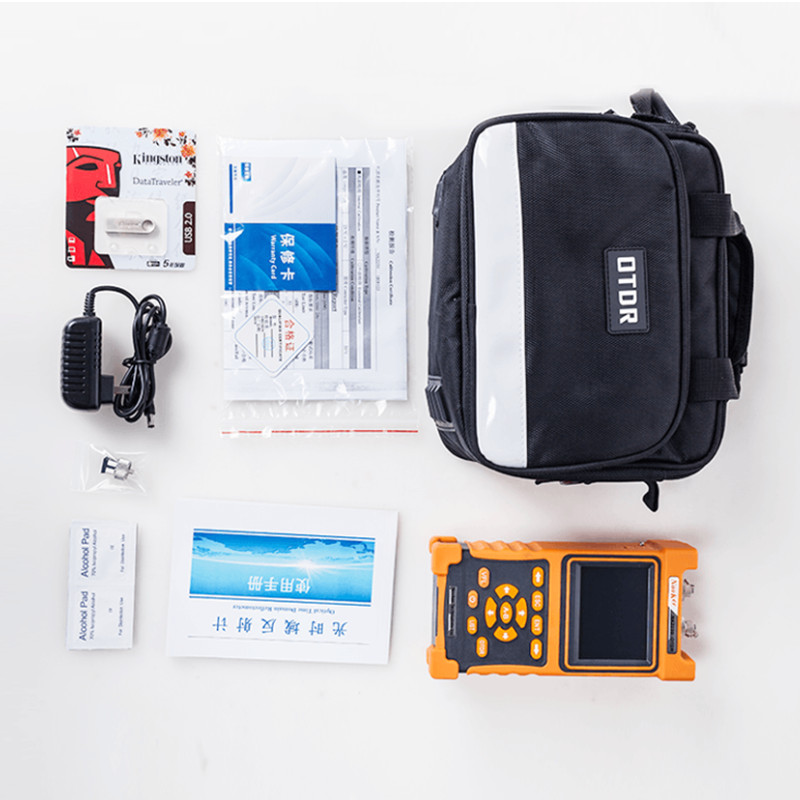

Standard Package

OTDR	1 unit
User’s manual	1 pc
AD/DC adapter	1 pc
Carrying bag	1 pc
Certificate	1 pc
USB Disk(including the analysis software)	1 pc
Power cord	1 pc
Stylus pen	1 pc

Features

--The industry's most convenient and easy operation mode;

- Optimization of the test parameters, simplifying the user tedious setup process.

- Short event dead zone, makes it easy to test fiber patch cord;

- With automatic testing, manual testing and other test modes;

- optical traffic detection and alarm function, to avoid damage to the device;

- Built-in VFL (≥5km);

- USB interface for fast file transfer;

- Replaceable connectors: FC/ST/SC(APC or UPC);

- Highly intelligent analysis software can accurately identify the failed splices, connectors or even macro bending;
